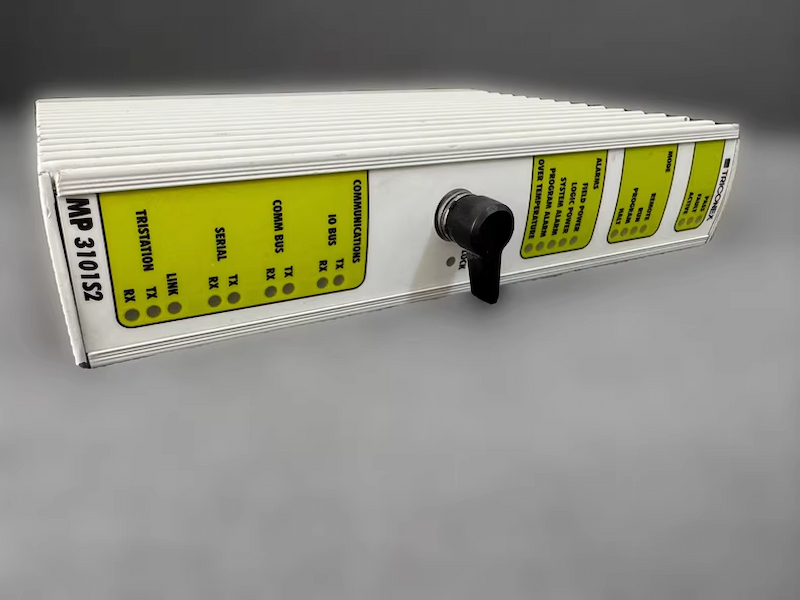

Invensys Triconex MP3101S2 Main Processor Module

Invensys Triconex MP3101S2 Main Processor Module

Every Tri-GP system is controlled by three MP Modules that reside on a single baseplate. Each MP Module acts as one channel of the triplicated Tri-GP system and provides the following features:

• An RS-232 or RS-485 Modbus port for direct TMR connection to a DCS (or other external host) without the need for any other modules

• A 10BaseT Ethernet (IEEE 802.3) port for connection to the TriStation 1131 programming workstation

• A lock lever that indicates whether the module is properly locked on the baseplate

Alarm Indicators

The Tri-GP faultmonitoring circuitry is able to detect and signal an alarm for all single faults and most multiple faults. The following alarm indicators are on the front panel of each MP:

• The Field Power alarm indicates loss of field power or faulty field power supply

• The Logic Power alarm indicates a missing or faulty system power supply

• The System Alarm indicates problems with the application or system integrity

• The Program Alarm indicates problems that are defined by the user-written application

The Over Temperature alarm indicates when the module is over 183° F (84° C)

Physical Description

Each MP provides 16 megabytes of DRAM for the user-written application, sequence-of-events (SOE) and I/O data, diagnostics, and communication buffers.

The three MPs compare their respective data during every scan using the TriBus, a high-speed, fault-tolerant inter-processor bus. The MPs communicate with the I/O modules over a TMR HDLC I/O bus that operates at 2 megabits per second.

In addition to the TriStation 1131 and Modbus ports and alarm connectors, the MP Baseplate provides redundant, 24-volt fused logic power connectors. Logic power supplied here can operate the MPs and carry to the I/O Baseplates as well, so that no other logic power supplies are needed for the column.

Technical Specifications
