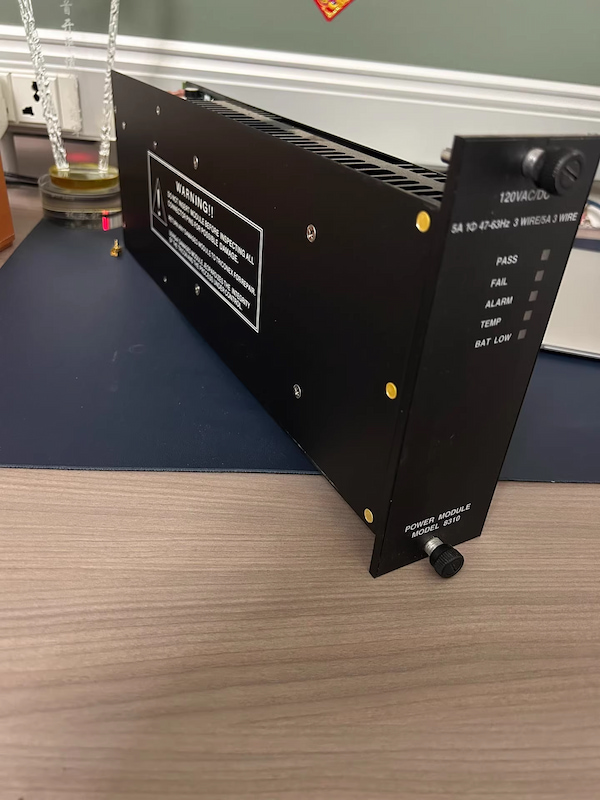

Invensys Triconex 8310 Power Module

Invensys Triconex 8310 Power Module

Each Tricon chassis is equipped with two power modules—either one is fully capable of running the Tricon at full load and rated temperature. Each power module can be replaced online. The power modules, located on the left side of the chassis, convert line power to DC power appropriate for all Tricon modules. Terminal strips for system grounding, incoming power and hardwired alarms are located on the lower left corner of the backplane. Incoming power should be rated for a minimum of 240 watts per power supply.

The Power Modules, located on the lower left side of the chassis, convert line power to DC power appropriate for all Tricon controller modules. Two terminal strips on the backplane are used to select controller grounding options, and for incoming power and alarm connections.

Each Power Module provides an in-line, slow-blow fuse for each external power source, mounted inside the module. The module can be replaced without disconnecting any wiring by removing the module from the chassis.

Each Tricon controller Power Module is a field-replaceable unit that uses high-efficiency DC-DC converters. All models of Power Modules are protected against reverse connection of the DC inputs.

The power module alarm contacts are actuated when:

• A module is missing from the system

• The hardware configuration conflicts with the control program's logical configuration

• A module fails

• A main processor detects a system fault

• Primary power to a power module fails

• A power module has a "Low Battery" or "Over Temperature" warning

Technical Specifications
