Invensys Triconex 8312 Power Supply Module

Invensys Triconex 8312 Power Modules

Each Tricon Chassis is equipped with two Power Modules—either one is fully capable of running the controller at full l oad and rated temperature. Power Modules convert line power to DC power appropriate for all Tricon modules. Any combination of Power Module models can be used in Tricon systems.

The Power Modules, located on the lower left side of the chassis, convert line power to DC power appropriate for all Tricon controller modules. Two terminal strips on the backplane are used to select controller grounding options, and for incoming power and alarm connections.

Each Power Module provides an in-line, slow-blow fuse for each external power source, mounted inside the module. The module can be replaced without disconnecting any wiring by removing the module from the chassis. The fuse on the Model 8311 24 VDC Power Module is not removable. If this fuse fails, you must return the module to Triconex for fuse replacement.

Each Tricon controller Power Module is a field-replaceable unit that uses high-efficiency DC-DC converters. All models of Power Modules are protected against reverse connection of the DC inputs.

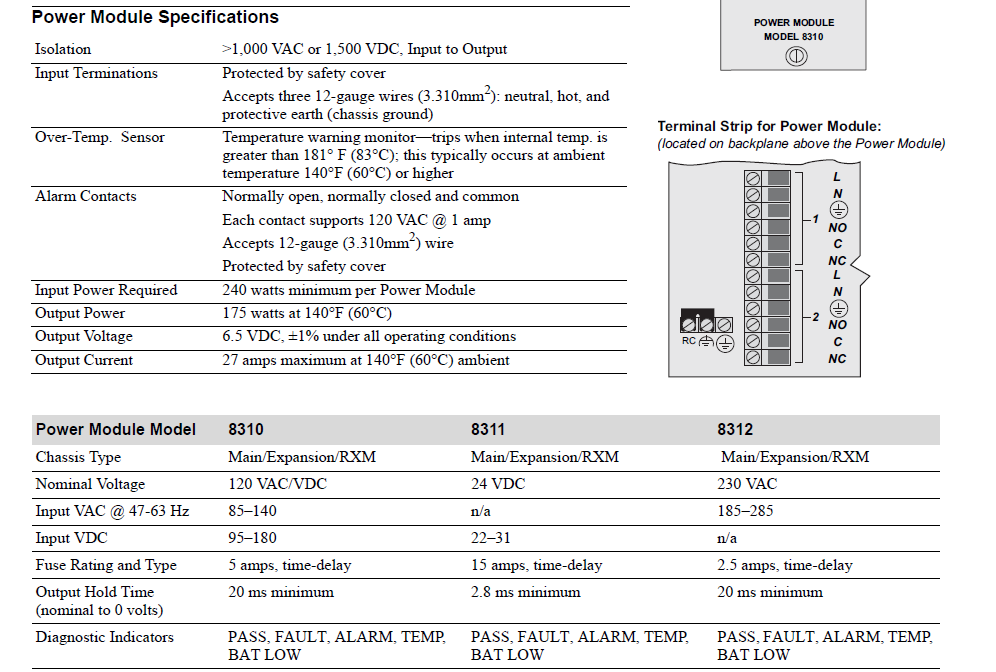

8312 Power Module Specifications

100% brand new and original,All the goods will be tested before shipment.
