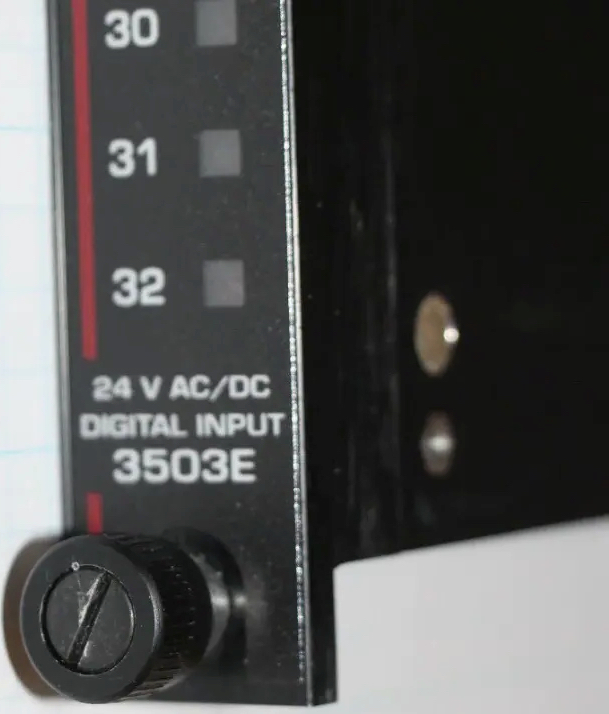

Invensys Triconex 3503E TMR Digital Input Module

TMR Digital Input Modules

On TMR Digital Input Modules, all critical signal paths are 100 percent triplicated to guarantee safety and maximum availability. Each channel conditions signals independently and provides isolation between the field and the Tricon controller.

3503E has a self-test feature which verifies the ability of the Tricon controller to detect transitions from a normally energized circuit to the Off state. Because most safety systems use a de-energize-to-trip setting, the ability to detect the Off state is an important feature. To test for stuck-On inputs, a switch within the input circuitry is closed to allow a zero input (Off) to be read by the optical isolation circuitry. The last data reading is frozen in the I/O Processor while the test is running.

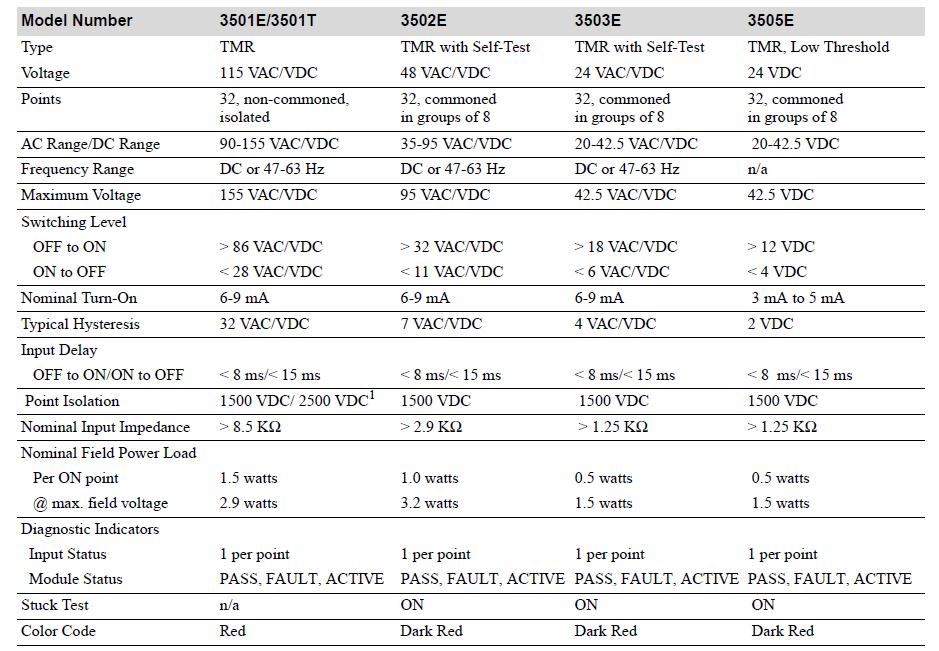

3503E Digital Input Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
