Invensys Triconex 3625 TMR Digital Output Module

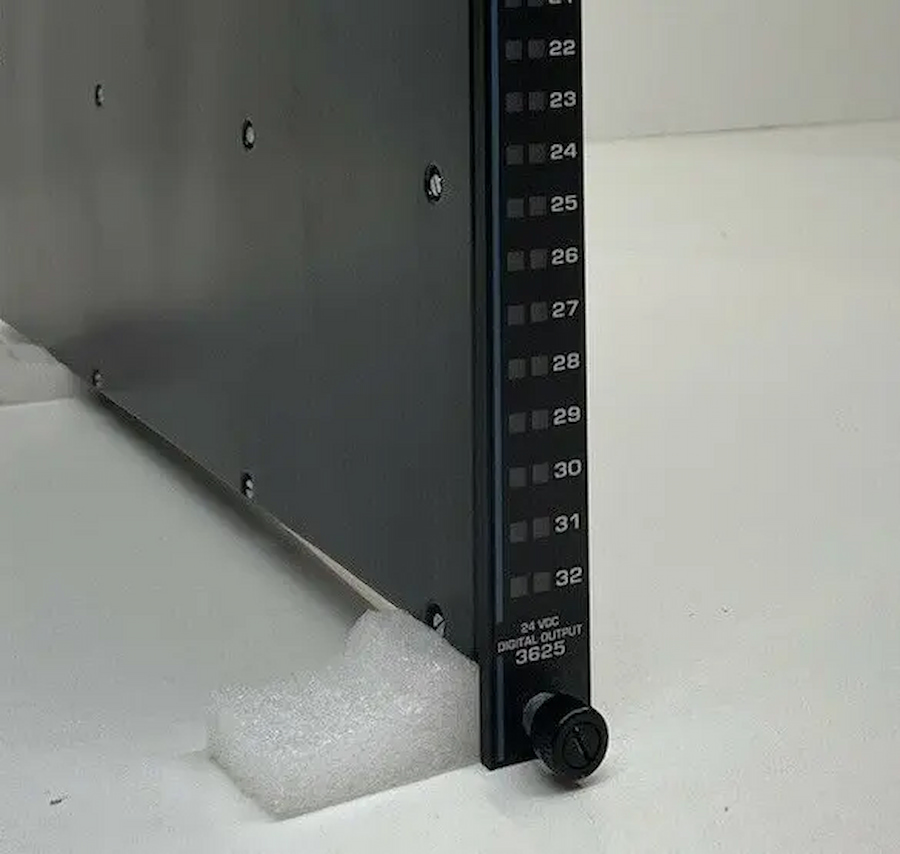

Invensys Triconex 3625

Each Digital Output Module houses the circuitry for three identical, isolated channels. Each channel includes an I/O microprocessor which receives its output table from the I/O communication processor on its corresponding Main Processor. All the Digital Output Modules, except the dual DC modules, use special quadruplicated output circuitry which votes on the individual output signals just before they are applied to the load. This voter circuitry is based on parallel-series paths which pass power if the drivers for Channels A and B, or Channels B and C, or Channels A and C command them to close—in other words, 2-out-of-3 drivers voted On. The dual Digital Output Modules provide a single parallel or series path, with the 2-out-of-3 voting process applied individually to each switch.

The quadruplicated output circuitry provides multiple redundancy for all critical signal paths, guaranteeing safety and maximum availability. The dual output module provides just enough redundancy to ensure safe operation. Dual modules are optimized for those safety-critical applications where low cost is more important than maximum availability.

Digital Output Modules include the hot-spare feature which allows online replacement of a faulty module. Like all I/O modules, Digital Output Modules require a separate field termination assembly with a cable interface to the Tricon controller backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.

Digital Output Modules are designed to source the current to field devices. Field power must be wired to each output point on a field termination module.

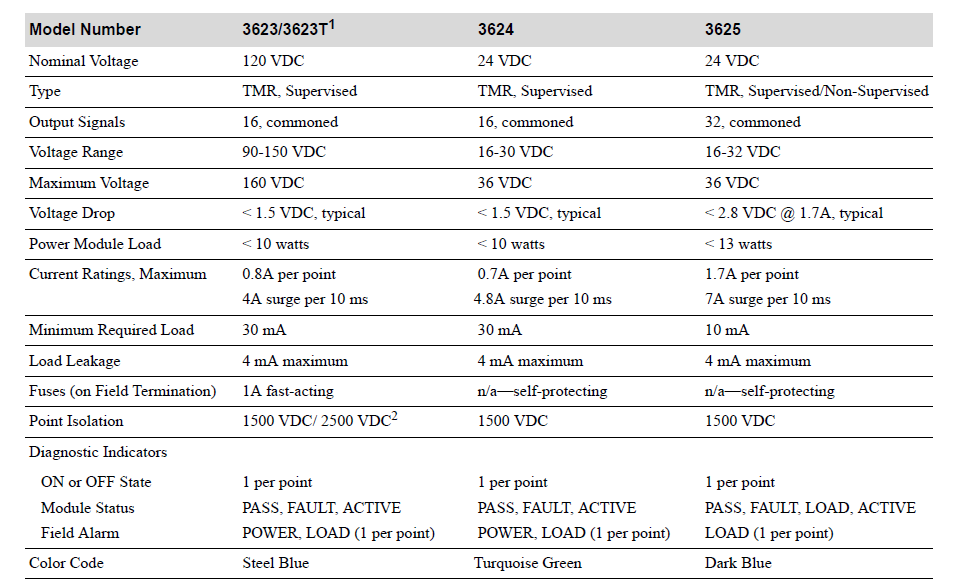

3625 Digital Output Specifications
