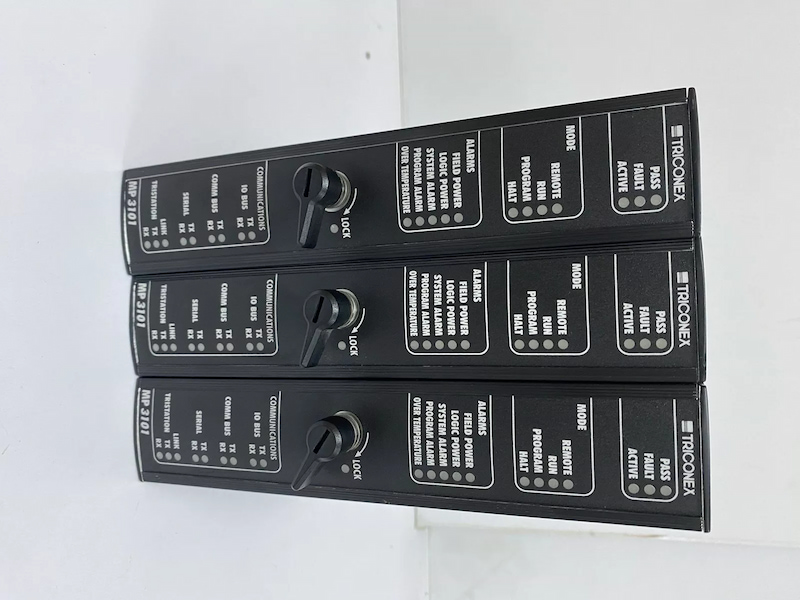

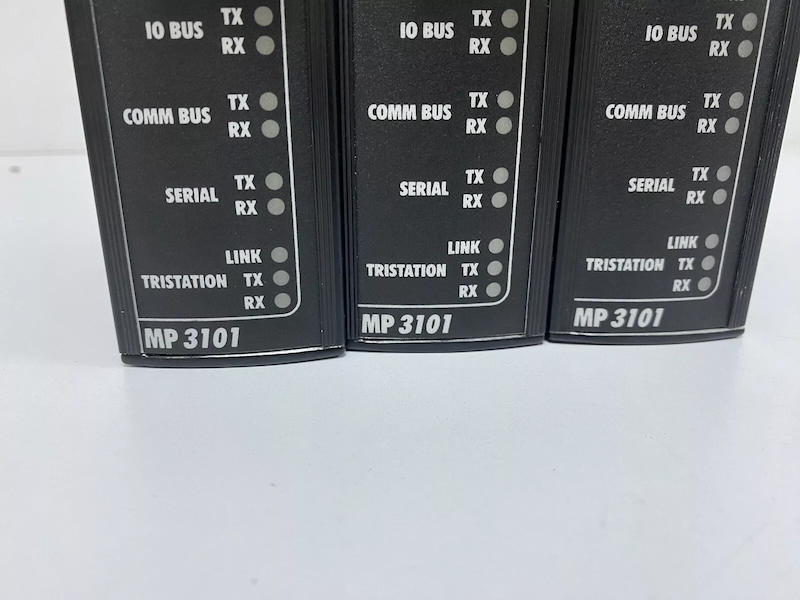

Invensys Triconex MP3101 Main Processor Module

Invensys Triconex MP3101 Main Processor Module

A minimum Trident system has one MP Baseplate housing three MPs. Each MP Module serves as one channel of a Trident system. An MP Module consists of processors that execute the following firmware:

• Application processor and system executive (SX)

• I⁄O processor and input/output executive (IOX)

The three MPs communicate with each other using an inter-processor bus called TriBus. TriBus is a high-speed, fault-tolerant communication path between the MPs that is used primarily for voting and diagnostics. The three MPs communicate with I⁄O modules over a TMR HDLC I⁄O bus that operates at 2 megabits per second.

Each MP contains one TriStation 10BaseT Ethernet port and one Modbus RS-232/485 serial port.

Each MP also contains redundant system alarm contacts. Connectors for the Ethernet ports, Modbus ports, and alarm contacts are located on the MP Baseplate. The MP Baseplate provides redundant, fused logic power connectors for the MP and I⁄O modules, which are directly connected to the I⁄O column.

A controller with a Model 3101 MP can include the following components:

• 1 Main Processor (MP) Baseplate assembly with 3 MP Modules

• 1 Communication Baseplate with up to 2 Communication Modules

• Up to 14 baseplates with up to 2 I/O modules per baseplate or up to 10 baseplates if using AO or PI Modules.

• Up to 15 Interconnect Assemblies

• I⁄O bus extender kits for each I⁄O column

• End Caps (top and bottom) for each column

Technical Specifications
