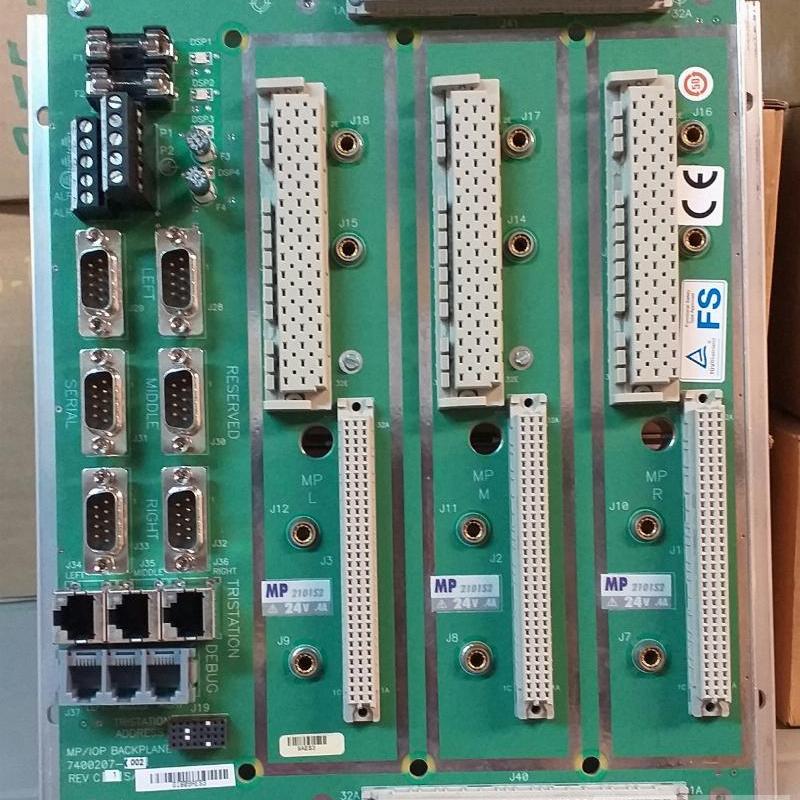

Invensys Triconex MP2101S2 Main Processor Baseplate

Invensys Triconex MP2101S2 Main Processor Baseplate

The MP2101S2 Main Processor Baseplate includes connections for alarm contacts and logic power and communication ports.

Baseplate Connections and Ports

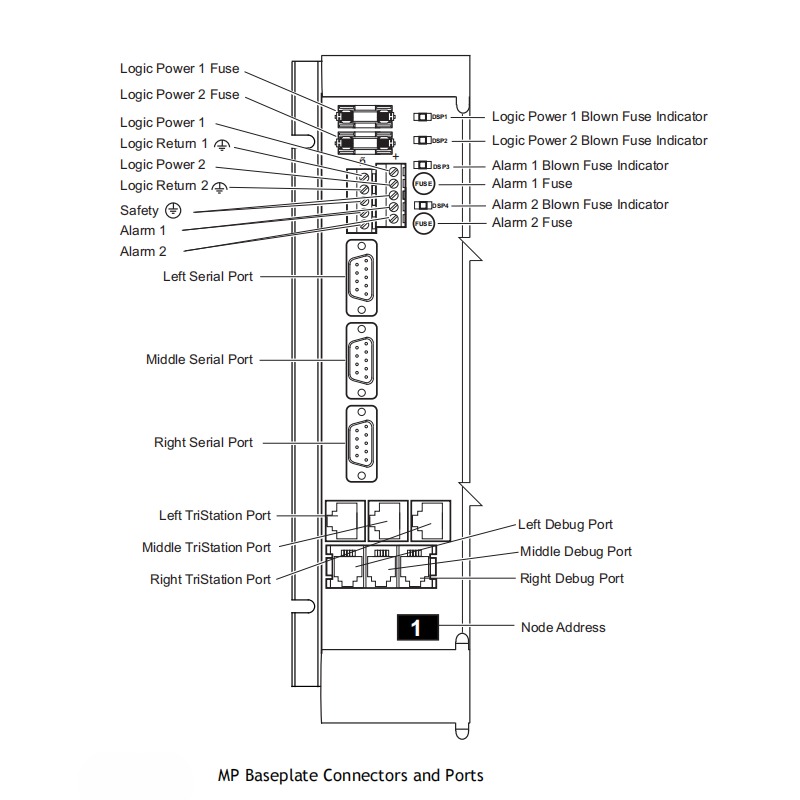

This figure depicts the connections for alarm contacts, logic power, and communication ports on the MP Baseplate. For specifications, see:

Alarm Connections

Alarms are asserted when the controller detects either a system alarm or a program alarm. Each MP contains a set of redundant alarm solid-state relays. The relays are normally closed and are connected in series between MP Modules.

• A system alarm indicates a fault in the controller, its power supplies, or field input.

• A program alarm indicates a problem detected by the control program.

Communication Ports

Ports on the MP Baseplate enable the Tri-GP controller to communicate with a PC running TriStation 1131 software and with other external devices by means of Modbus and Ethernet protocol.

Ports include:

• One Ethernet (IEEE 802.3) TriStation 1131 port for downloading the control program to the Tri-GP controller and uploading diagnostic information. This port can also be used to download Tri-GP firmware to the Flash ROM.

• One Modbus RS-232 or RS-485 serial port which acts as a Modbus slave while an external device is the master.

• Debug ports used for Technical Support.

Technical Specifications
