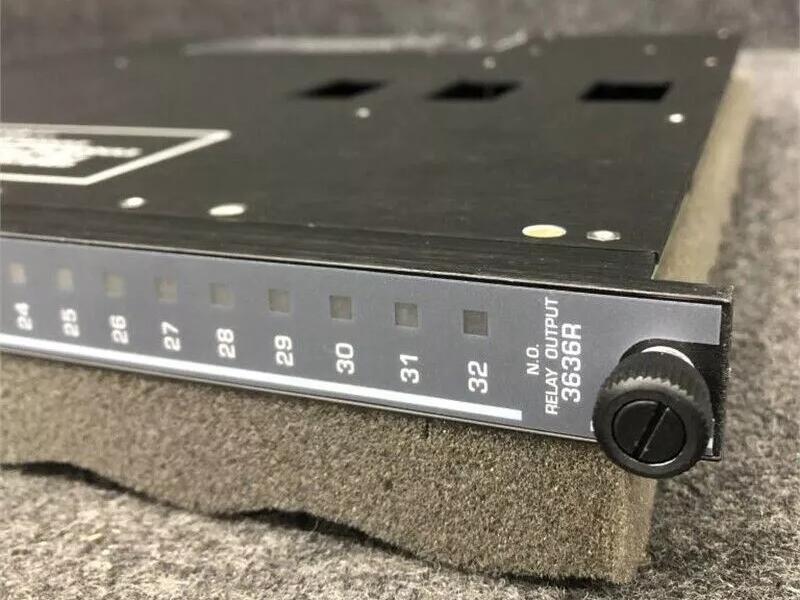

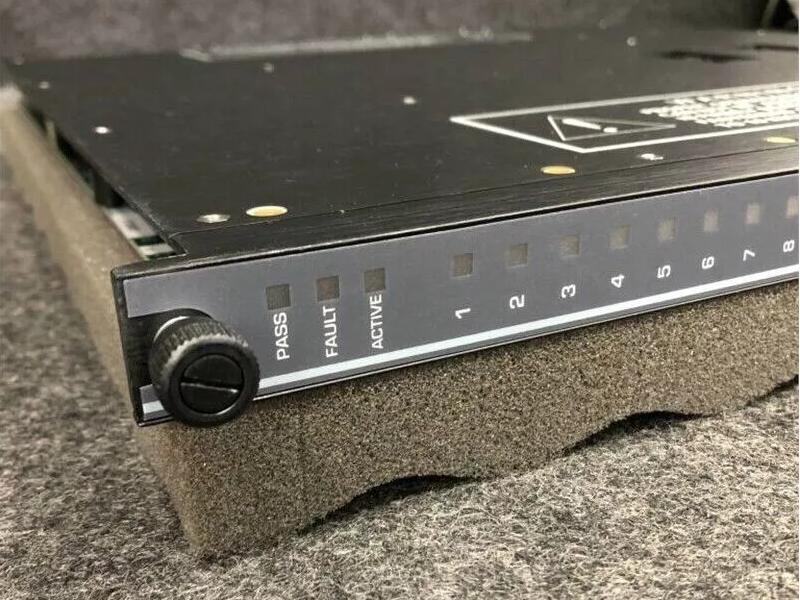

Invensys Triconex 3636R Relay Output Module

Invensys Triconex 3636R Relay Output Module

Functional Description

The model 3636R Relay Output Module is a non-triplicated module for use on non-critical points which are

not compatible with "high-side" solid-state output switches.

The Model 3636R modules will not assert point LEDs for both primary and spare modules. Only the primary

module will assert point LEDs.

The 3636R relay output module comes with normally open (NO) contacts. It supports hot-spare modules

and requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane.

Technical Specifications
