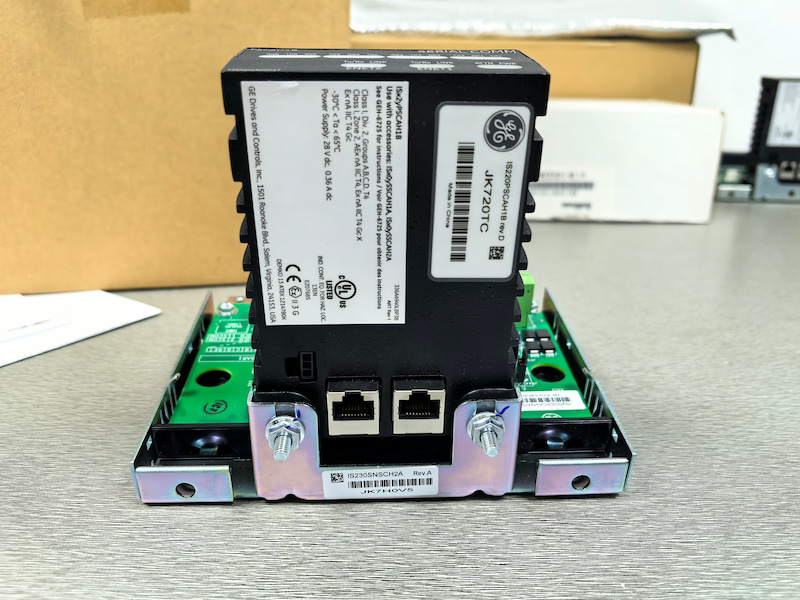

GE IS230SNSCH2A Serial Communication Module

GE IS230SNSCH2A Serial Communication Module

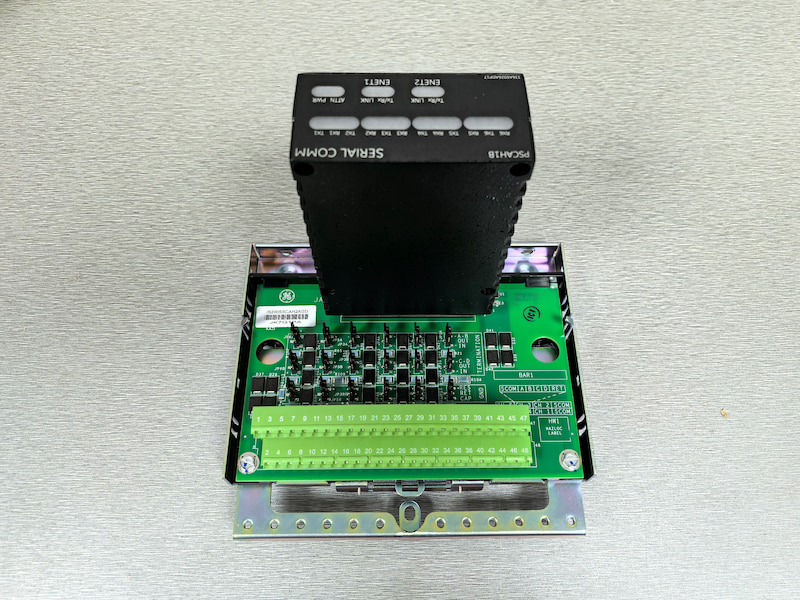

The IS230SNSCH2A serial communication module provides Modbus Master protocol from the Gateway controller to other devices via Serial or Ethernet media. The Modbus Master module consists of two order able parts: the Serial Communication IS220PSCAH1B I/O pack and the Simplex Serial Communication Input/Output (I/O) IS200SSCAH2A terminal board. The module is only available in a Simplex configuration.

The Modbus Master module supports six serial transceiver channels, each of which can be individually configured to comply with RS-232, RS-422, or RS-485 half-duplex requirements. Jumpers on the SSCA terminal board are used to set up the termination scheme for the selected communication mode. Up to six channels can be configured for Serial Modbus Master service.

Additionally, the PSCA I/O pack can use one of two Ethernet ports to support the Ethernet TCP Modbus Master protocol. The Ethernet Modbus implementation follows the open Modbus/TCP specification for a Class 1 device.

Technical Specifications
