GE IS400TRLYS1B Relay Output With Coil Sensing Terminal Board

GE IS400TRLYS1B Relay Output With Coil Sensing Terminal Board

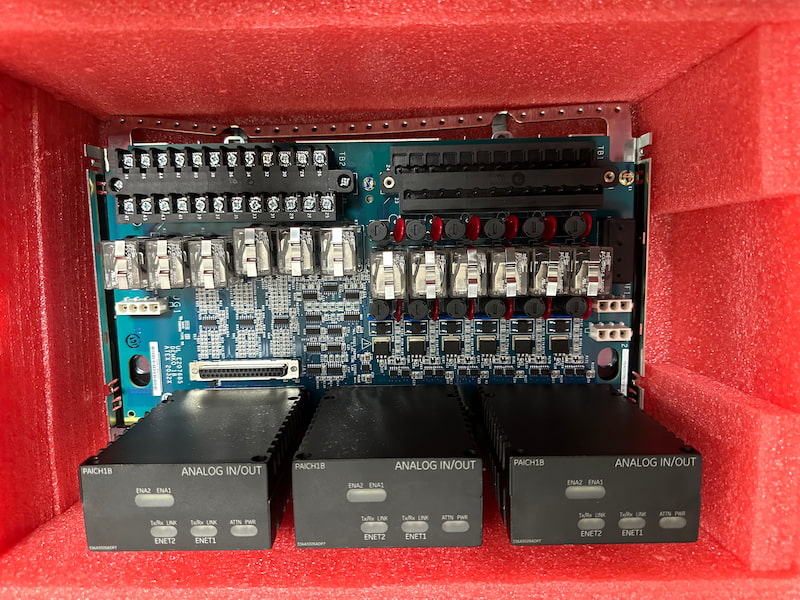

The IS400TRLYS1B Relay Output with coil sensing (TRLYS1B) terminal board holds 12 plug-in magnetic relays. The first six relay circuits configured by jumpers for either dry, Form-C contact outputs, or to drive external solenoids. A standard 125 V dc or 115/230 V ac source, or an optional 24 V dc source with individual jumper selectable fuses and on-board suppression, can be provided for field solenoid power. The next five relays (7-11) are unpowered isolated Form-C contacts. Output 12 is an isolated Form-C contact, used for special applications such as ignition transformers.

Compatibility

The terminal board supports simplex and TMR applications. The I/O pack plugs into the DC-37 pin connectors on the terminal board. Connector JA1 is used on simplex, and connectors JR1, JS1, and JT1 are used for TMR.

Installation

Connect the wires for the 12 relay outputs directly to two I/O terminal blocks on the terminal board. Each block is held down with two screws and has 24 terminals accepting up to #12 AWG wires. A shield terminal strip attached to chassis ground is located on to the left side of each terminal block.

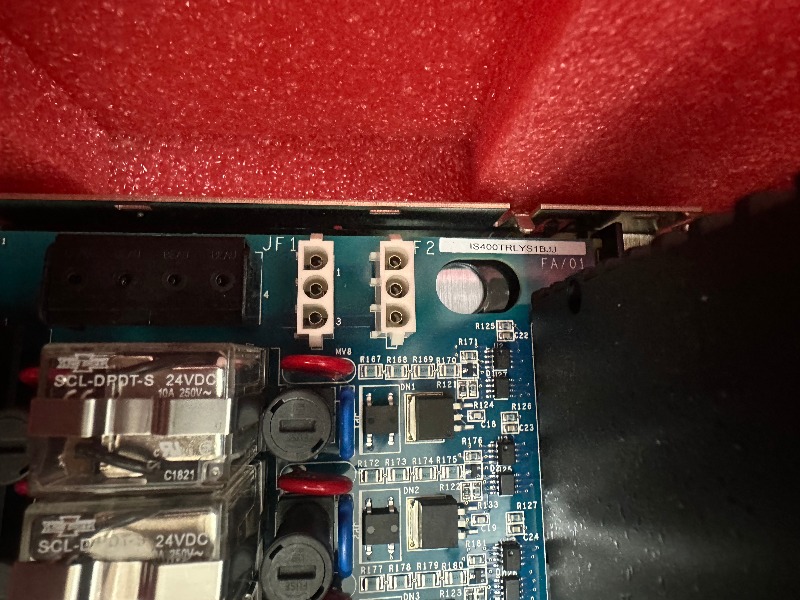

Connect the solenoid power for outputs 1-6 to JF1. JF2 can be used to daisy chain power to other TRLYs. Alternatively, power can be wired directly to TB3 when JF1/JF2 are not used. Connect power for the special solenoid, Output 12, to connector JG1.

Jumpers JP1-JP6 are supplied with the board. The appropriate jumper should be installed if power to a field solenoid is required. Conduct individual loop energization checks as per standard practices and install the jumpers as required. For isolated contact applications, remove the fuses to ensure that suppression leakage is removed from the power bus. If both the jumpers and the fuses are not removed, external power will be connected to the suppression circuits in some operating conditions.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
