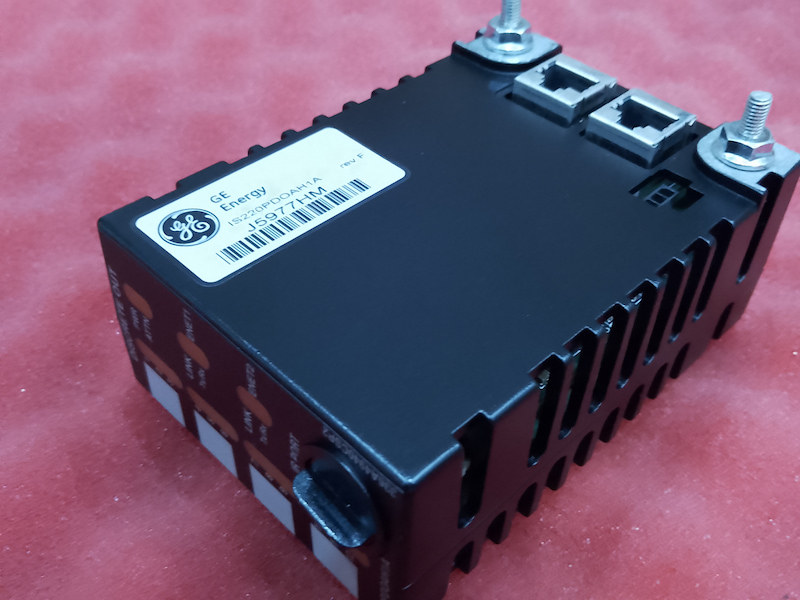

GE IS220PDOAH1A Discrete Output I/O Pack

IS220PDOAH1A - Proportional Digital Output Module

IS220PDOAH1A is a Proportional Digital Output Module Manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Gas Turbine Control Systems.

The PDOA provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board. The pack contains a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to the discrete output function.

The pack can control up to 12 relays and accepts terminal board-specific feedback.

Electromagnetic relays (with types TRLYH1B, C, D, and F terminal boards) and solid-state relays (with type TRLYH1E boards) are available.

Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs, and local diagnostic serial communications are possible through an infrared port.

The Mark Vle Control Discrete Output Module, Cat. No.IS220PDOAH1A is intended to be used with accessory terminal board Cat. Nos. IS200TRLYH2E, IS200TRLYH3E IS200TRLYH1F, IS200TRLYH2F.

• Simplex uses one I/O pack with one or two network connections.
• Dual uses two I/O packs with one or two network connections.
• TMR uses three I/O packs with one network connection on each.

• Directly plug one PDOA I/O pack for simplex or three PDOA I/O packs for TMR into the terminal board connectors.

• Mechanically secure the packs using the threaded studs adjacent to the Ethernet ports. The studs slide into a mounting bracket specific to the terminal board type. The bracket location should be adjusted such that there is no right-angle force applied to the DC37 connector between the pack and the terminal board. The adjustment should only be required once in the life of the product.

• Plug in one or two Ethernet cables depending on the system configuration. The pack will operate over either port. If dual connections are used, the standard practice is to connect ENET1 to the network associated with the R controller.

• Apply power to the pack by plugging in the connector on the side of the pack. It is not necessary to insert this connector with the power removed from the cable as the I/O pack has inherent soft-start capability that controls the current inrush on the power application.

Operation:

The processor board connects to an acquisition board specific to the I/O pack function. Upon application of input power, the soft-start circuit ramps up the voltage available on the processor board. The local power supplies are sequenced on, and the processor reset is removed. The processor completes self-test routines and then loads application code specific to the I/O pack type from flash memory. The application code reads board ID information to ensure the correct matching of the application code, acquisition board, and terminal board. With a good match, the processor attempts to establish Ethernet communications, starting with the request of a network address. The address request uses the industry standard dynamic host configuration protocol (DHCP) and the unique identification read from the terminal board. After Ethernet initialization, the processor programs the on-board logic, runs the application and enables the acquisition board to begin operation.

• High-speed processor with RAM and flash memory
• Two fully independent 10/100 Ethernet ports with connectors
• Hardware watchdog timer and reset circuit
• Local ambient temperature sensor
• Infrared serial communications port
• Status-indication LEDs
• Electronic ID and the ability to read IDs on other boards
• Substantial programmable logic supporting the acquisition board
• Input power connector with soft start/current limiter
• Local power supplies, including sequencing and monitoring
