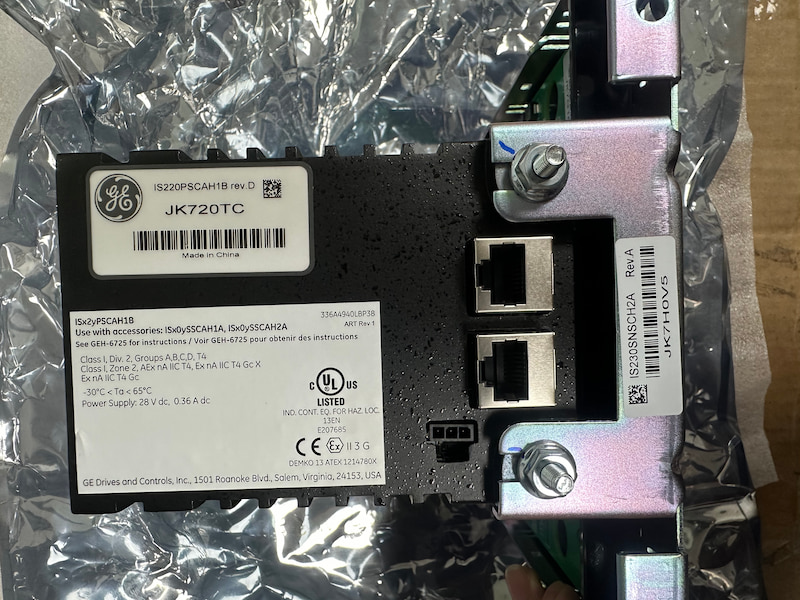

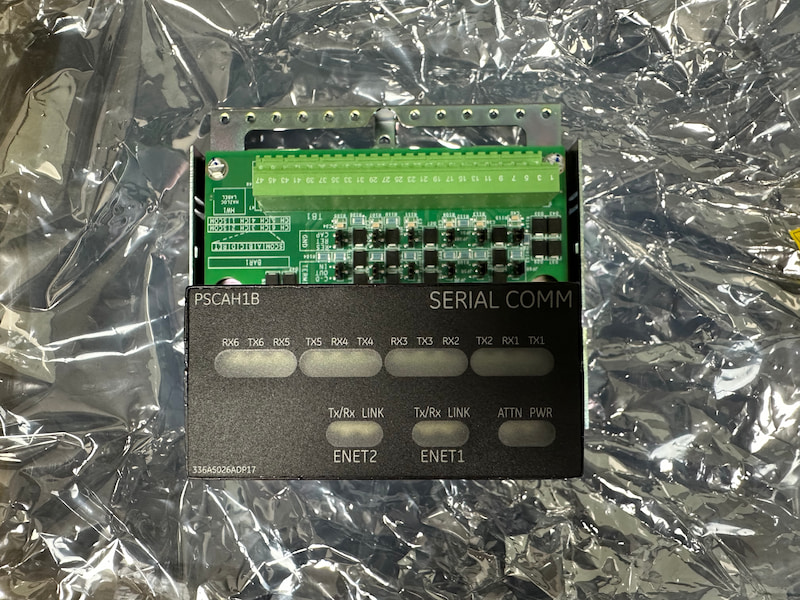

The IS220PSCAH1B Serial Communication PSCA I/O pack provides the electrical interface between one or two I/O Ethernet networks and a serial communications terminal board. The I/O pack contains a BPPx processor board common to all Mark* VIe distributed I/O packs and a serial communications board. The communications board contains six serial transceiver channels, each of which can be individually configured to comply with RS-232, RS-422, or RS-485 half-duplex standards.

Input to the I/O pack is through dual RJ-45 Ethernet connectors and a 3-pin power input. Output is through a DC-62 pin connector that connects directly with the associated terminal board connector. One of the Ethernet ports can be used to support Ethernet Modbus communication on Simplex networks. Visual diagnostics are provided through indicator LEDs.

The PSCA I/O pack includes one of the following compatible BPPx processor boards:

• The PSCAH1A contains a BPPB processor board.

• The PSCAH1B contains a functionally compatible BPPC that is supported in ControlST* software suite V04.07 and later.

Installation

1. Securely mount the desired terminal board.

2. Directly plug one PSCA I/O pack into the SSCA terminal board connector.

3. Mechanically secure the I/O packs using the threaded inserts adjacent to the Ethernet ports. The inserts connect with a mounting bracket specific to the terminal board type. The bracket location should be adjusted such that there is no right angle force applied to the DC-62 pin connector between the I/O pack and the terminal board. The adjustment should only be required once in the service life of the product.

4. Plugin one or two Ethernet cables depending on the system configuration. The I/O pack operates over either port. If dual connections are used, standard practice is to hook ENETI to the network associated with the R controller, however, the PSCA is not sensitive to Ethernet connections and will negotiate proper operation over either port.

5. Apply power to the I/O pack by plugging in the connector on the side of the pack. It is not necessary to remove power from the cable before plugging it in because the I/O pack has inherent soft-start capability that controls current inrush on power application.

6. From the ToolboxST* application, add the PSCA module, and add and configure the required devices. From the Component Editor, press F1 for help.

Operation

The following features are common to the distributed I/O modules:

• BPPx Processor

• Processor LEDs

• Power Management

• ID Line

• I/O Module Common Diagnostic Alarms

Technical Specifications
