GE IS200ISBDG1A IS200ISBDG1AAA Insync Delay Board

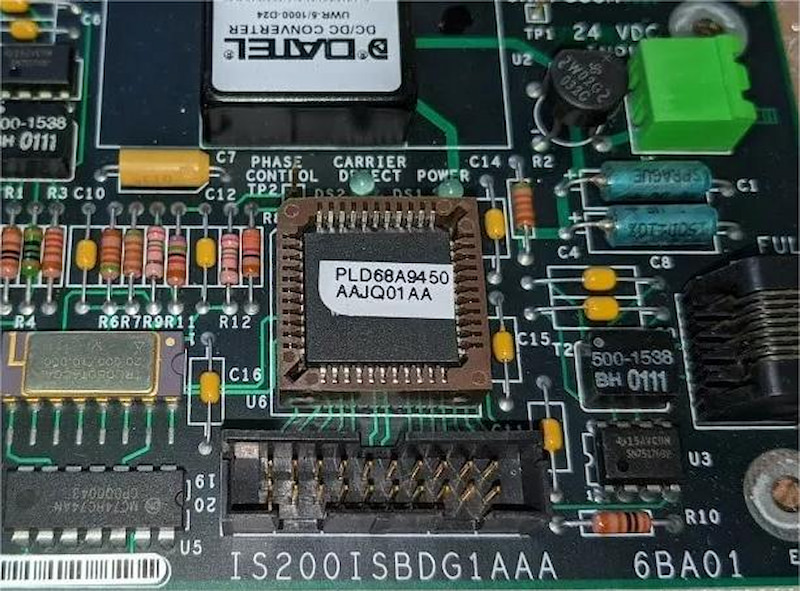

IS200ISBDG1AAA Insync Delay Board

The IS200ISBDG1AAA is a Insync Delay Board, manufactured and designed by General Electric as part of the EX2100 Excitation Series used in the GE Speedtronic Control System.

The Insync Delay Board serves as a vital link in the control and coordination of system operations, ensuring precise timing and synchronization of critical processes. With its specialized design and robust construction, it provides reliability and performance under demanding operating conditions.

Board Components:

· Test Points (TP): The board is equipped with TP test points strategically placed to provide convenient access for diagnostic and testing purposes. These test points facilitate troubleshooting and maintenance activities, allowing technicians to efficiently identify and address any issues that may arise during operation.

· LEDs: Two LEDs are integrated into the board design to serve as visual indicators. These LEDs offer real-time feedback on system status or operational modes, enhancing user monitoring capabilities. They provide a quick and intuitive way to assess the board's status, aiding in system management and performance monitoring.

· Transformers: The board features two transformers designed to fulfill vital roles in the system's operation. These transformers enable voltage transformation and signal conditioning as dictated by the system's operational specifications. They ensure that signals are appropriately processed and compatible with the board's circuitry, contributing to the overall reliability and efficiency of the system.

· Integrated Circuits (ICs): Several integrated circuits are strategically positioned on the board's surface. These ICs play diverse roles, including processing, control, or signal management functions essential for the Insync Delay Board's operation and performance. They execute complex tasks with precision, ensuring the board's functionality aligns with the system's requirements and specifications. The ICs optimize performance, reliability, and efficiency, making them integral components of the board's design.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
