GE IS200ISBBG1A IS200ISBBG1AAB Insync Bus Bypass Card

IS200ISBBG1AAB Insync Bus Bypass Card

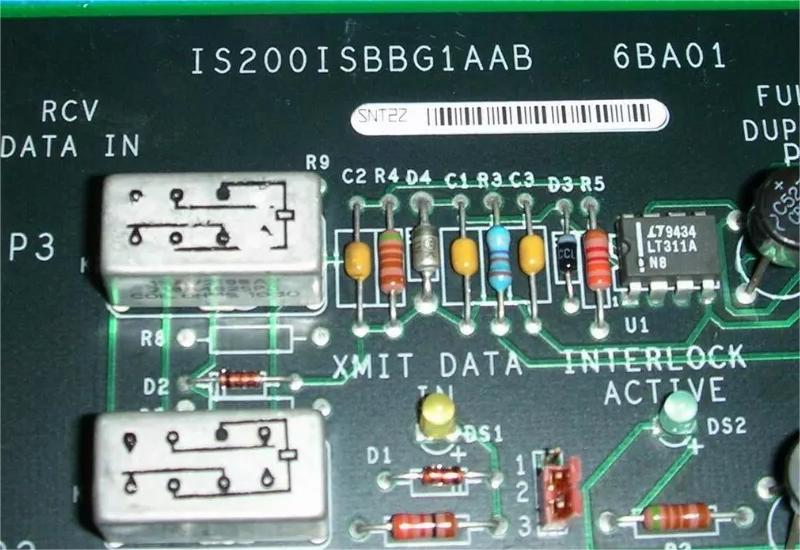

The IS200ISBBG1AAB is a Insync Bus Bypass Card, manufactured and designed by General Electric as part of the EX2100 Excitation Series used in the GE Speedtronic Control System.

The module incorporates a JP1 Interlock Bypass feature, which provides enhanced flexibility and control over the interlock functionality. The interlock bypass allows users to temporarily override the interlock system, enabling specific operations or functions to proceed even when certain interlock conditions are present.

Features:

· Compact Size and DIN Rail Mounting: Designed to be compact, allowing for easy installation and integration into control systems. It is typically mounted on DIN rails, which are standard mounting rails used in industrial applications. The module's size and form factor make it suitable for space-constrained environments, providing flexibility in installation.

· Secure Mounting: Securely mounted on the DIN rail using screws. The DIN rail has four factory-drilled holes that align with corresponding holes on the module. The conductive material surrounding these holes ensures proper grounding and electrical connectivity. The holes are conveniently labeled as E1, E2, E3, and E4, aiding in the identification and connection of external components or other boards.

· Connector Options: Equipped with four connectors to facilitate connections with off-board components or other modules. These connectors include three plug connectors labeled as P1, P2, and P3, and a terminal strip labeled as P4. The specific functions of these connectors are identified as follows: P1 - Full Duplex, P2 - XMIT Data Out, P3 - RCV Data In, and P4 - 24 VDC Input. The connectors provide convenient interfaces for data exchange and power supply connections.

· Terminal Strip and Screw Connections: In addition to the plug connectors, the module features a terminal strip (P4) with two screw connections. This terminal strip offers a flexible and reliable means of connecting external wires or cables. It allows for secure and easily accessible connections, enhancing the overall functionality and versatility of the module.

· Jumper Position Indication: It includes a jumper whose position and corresponding outcome are clearly indicated on the board's surface. This visual indication assists in identifying the current configuration or setting of the jumper. The jumper's position may have an impact on the module's functionality or behavior, and the clear labeling ensures accurate setup and operation.

· LED Indicators: Features two LEDs, yellow and green, which serve as status indicators. The yellow LED represents XMIT data, providing visual feedback on the transmission of data. The green LED indicates the active state of the interlock, signaling whether the interlock system is engaged or not. These LED indicators provide quick and intuitive visual cues for monitoring the module's status.

· Integrated Voltage Comparator: The module incorporates an integrated circuit that includes a voltage comparator with a response time of 200ns. This voltage comparator plays a critical role in comparing voltages and generating output signals based on predefined thresholds. Its fast response time ensures efficient and accurate voltage comparisons, contributing to the overall performance and reliability of the module.

Technical Specifications
