GE IS200ISBEH1ABB ISBus Extender Board

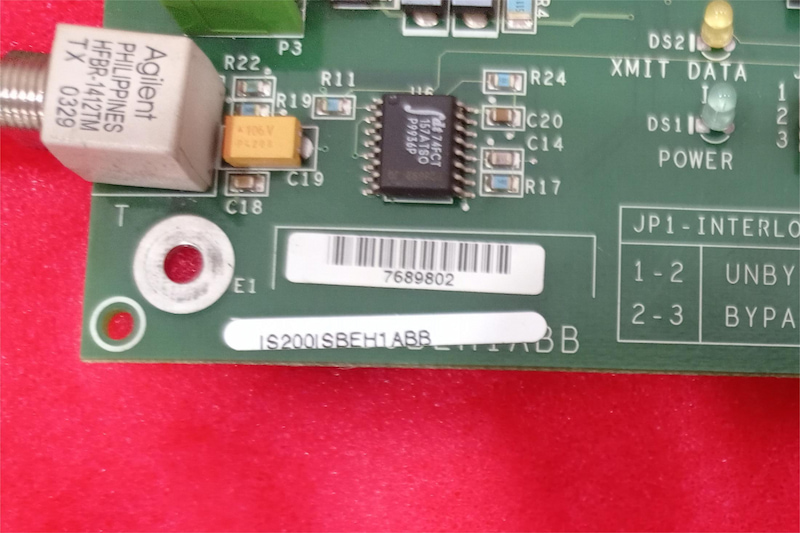

IS200ISBEH1ABB ISBus Extender Board

A bypass relay is part of the ISBE board. It connects the transmit signals from either the full duplex input (PlA) or the AUX XMIT DATA IN (P1B) to the fiber optic transmit outout data (P2). This is done through the transmit electrical-to-optical conversion and the optical receiv- data-input connector (P3) of the ISBus, to the full duplex connector through the receive optical-to-electrical converter when 24 V dc is available (on either P1A or TB2) and the interlock connection on P1A or JPl is closed.

If the 24 V dc is not supplied to the ISBE board the follovying occurs:

· The transmit connection between P1 nd P2 is interrupted (broken).

· The receive connection between P3 and P1 is interrupted (broken).

· The connection between the receive input (P3) and the transmit output (P2) is made such that receive optical input data are converted to electrical signals, optionally retimed and reconverted to an optical output signals.

The dc-dc converter is capable of accepting an input voltage of 18 to 36 V and has a maximum input power requirement of 5 watts.
