GE IC752SPL013 Diagnostic Interface Keypad

GE IC752SPL013 Diagnostic Interface Keypad

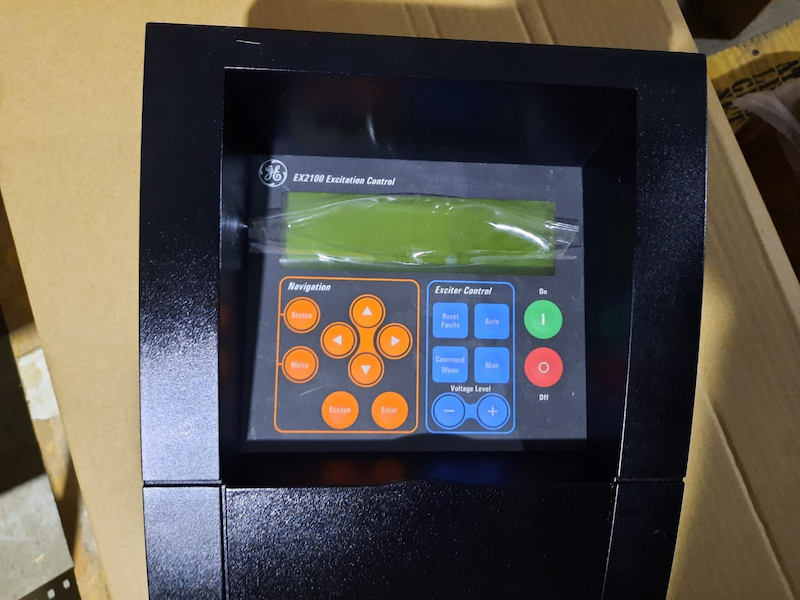

The IC752SPL013 keypad is a local operator interface that is mounted on the control cabinet door, local control unit that enables you to:

• Monitor frequency, current, power, and voltage

• Start and stop the exciter

• Set and adjust configuration parameters

• Examine and reset fault conditions

The keypad includes membrane-type pushbuttons to access exciter values and to control the exciter. Navigation Pushbuttons and Exciter Control Pushbuttons define the pushbutton functions for menu navigation and exciter control.

The keypad displays information as both text and animated graphics. There are two types of content screens, selected by pressing the corresponding Navigation button: Status and Menu.

The Status Screen is the default screen that displays after exciter startup, following an initialization screen. It uses animated meters with associated text to present exciter performance data. An alternate status screen can also be accessed.

The Menu Screen lists and provides access to menu-based functions for adjusting parameters, running wizards, and viewing faults.

The Exciter Health and State Icons continually show on the righthand side of all display screens. They indicate if the exciter is functioning correctly and show its running state. These icons are displayed in five functional groups, as shown below. You can change the display units and adjust the display contrast, if needed.

Technical Specifications
