The IS220PSCHH1A Serial Communication Input/Output (PSCH) pack provides specialized communication support for GE Drilling equipment, including the blowout preventer (BOP). The PSCH can have one or two I/O Ethernet networks and mounts to the serial communications terminal board (SSCA). Several unique communication devices (protocols) can be configured to manage l/O points during scans.

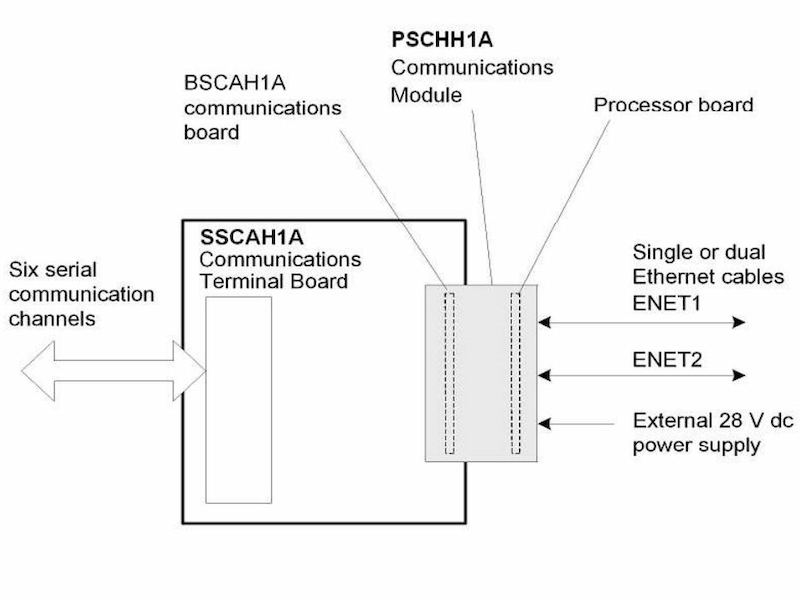

The PSCH I/O pack contains a processor board used with most distributed I/O modules and a serial communications board (BSCA). The BSCA contains six serial transceiver channels, each of which can be individually configured to comply with RS-232C, RS-422, or RS-485 half-duplex standards. Input to the I/O pack is through dual RJ-45 Ethernet connectors and a 3-pin power input. Output is through a DC-62 pin

connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.

Installation

1. Securely mount the SSCA terminal board inside the distributed I/O cabinet. Refer to GEH-6721_Vol_ ll, the chapter PSCA Serial Communication Module, the section SSCA Simplex Serial Communication Terminal Board.

2. Directly plug one PSCH /O pack into the SSCA terminal board connector.

3. Mechanically secure the I/O pack using the threaded inserts adjacent to the Ethernet ports. The inserts connect with the mounting bracket specific to the terminal board type (H1 or H2). The bracket location should be adjusted such that there is no right angle force applied to the DC-62 pin connector between the PSCH I/O pack and the terminal board. This adjustment should only be required once in the service life of

the PSCH.

4. Plug in one or two Ethernet cables depending on the system configuration. The PSCH operates over either port. If dual connections are used, standard practice is to attach ENET1 to the network associated with the R controller. However, the PSCH is not sensitive to Ethernet connections, and will operate correctly over either port.

5. Apply power to the PSCH by plugging in the connector on the side of the l/O pack. It is not necessary to remove power from the cable before plugging it in because the PSCH has inherent soft-start capability that controls current inrush on power application.

6. From the ToolboxST* application, add the PSCH I/O module and communication devices, Refer to GEH-6700, the chapter Special /O Functions.

Technical Specifications
