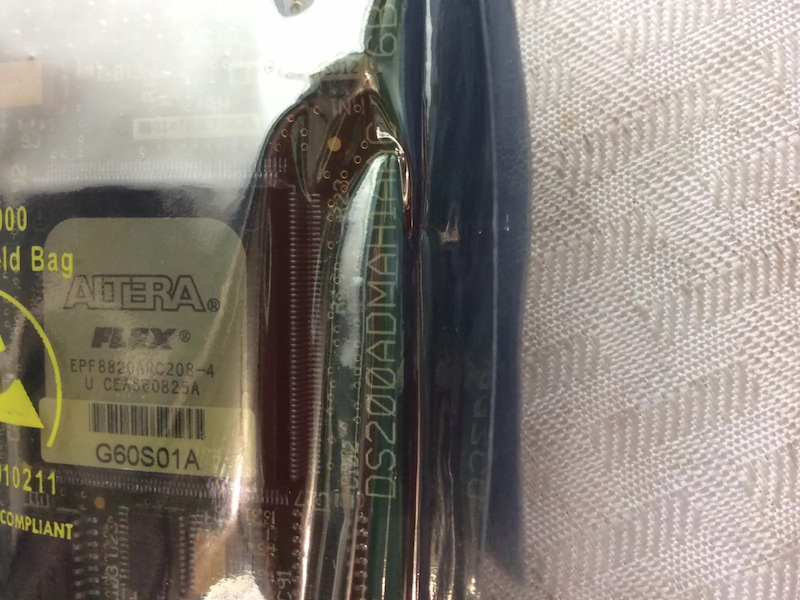

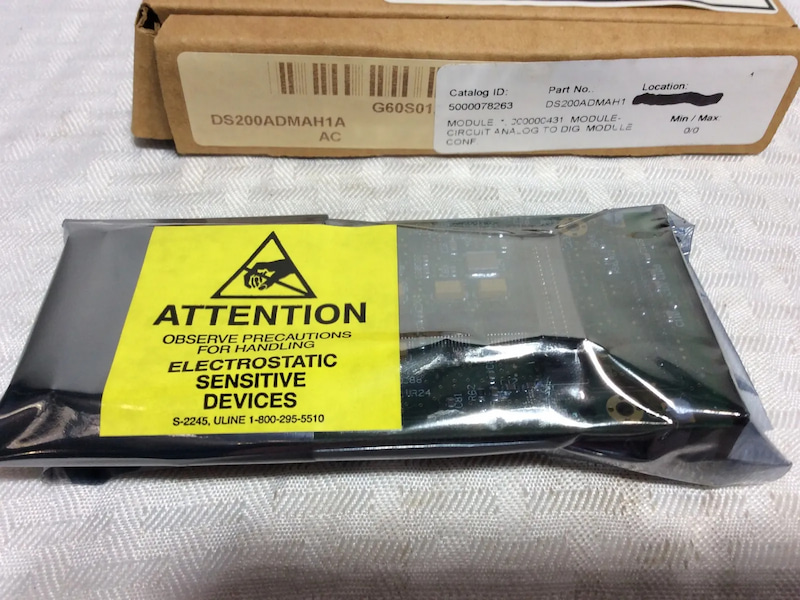

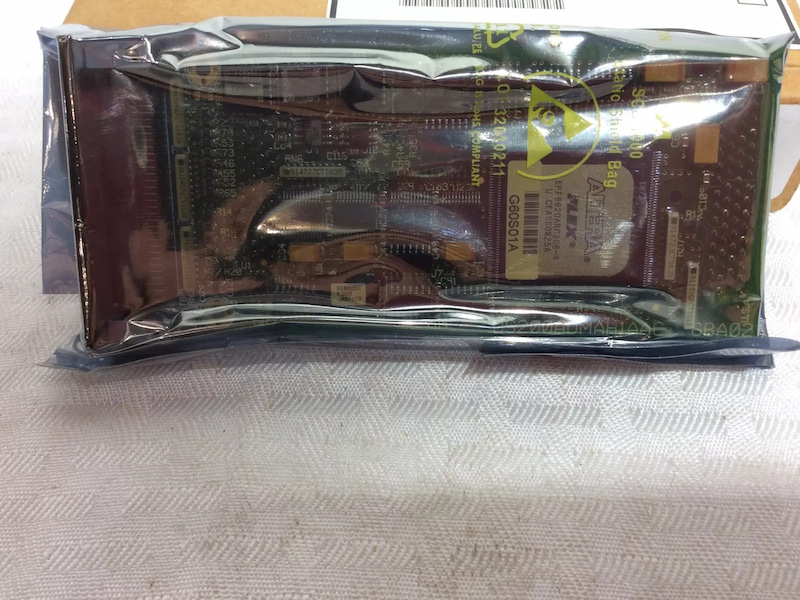

GE DS200ADMAH1A Analog To Digital Module Daughterboard

GE DS200ADMAH1A Analog To Digital Module Daughterboard

The DS200ADMAH1A daughterboard (ADMA) is an auxiliary I/O daughterboard that mounts on the DS200DSPC board (DSPC). The ADMA board connects to an external high voltage terminal board DS200DDTB (DDTB) by means of high density connectors and cables.

The ADMA-DDTB board set provides an interface to analog inputs and outputs including buffering, filtering,and conversion in both directions for the DSPC board. The board set also provides a selection of discrete digital I/O input and output signals with buffering and conditioning.

The ADMA board plugs into one pair of the four pairs of XA_ and XB_ interface connectors on the DSPC board (as defined by the individual project). It is additionally secured in place by three standoffs with screws supplied with the DSPC board.

Configurability

The ADMA board uses a static RAM-based erasable programmable logic device (EPLD) to implement the interface logic to the host DSPC board. The EPLD is configured by the DSPC board during system power up or reset.

LEDS

There are two LEDs located on the ADMA board faceplate. These LEDs indicate ADMA board status, the green IMOK LED indicates that the board is functioning properly, while the red FAIL LED is driven by software on the DSPC board and indicates that something on the ADMA board has failed.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
