GE IS215ACLEH1C IS215ACLEH1CA Application Control Layer Module

GE IS215ACLEH1C Application Control Layer Module

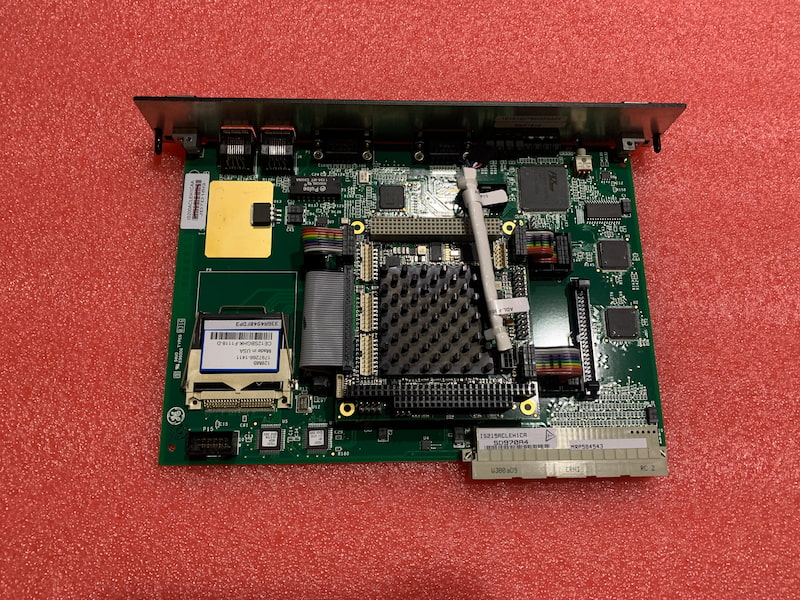

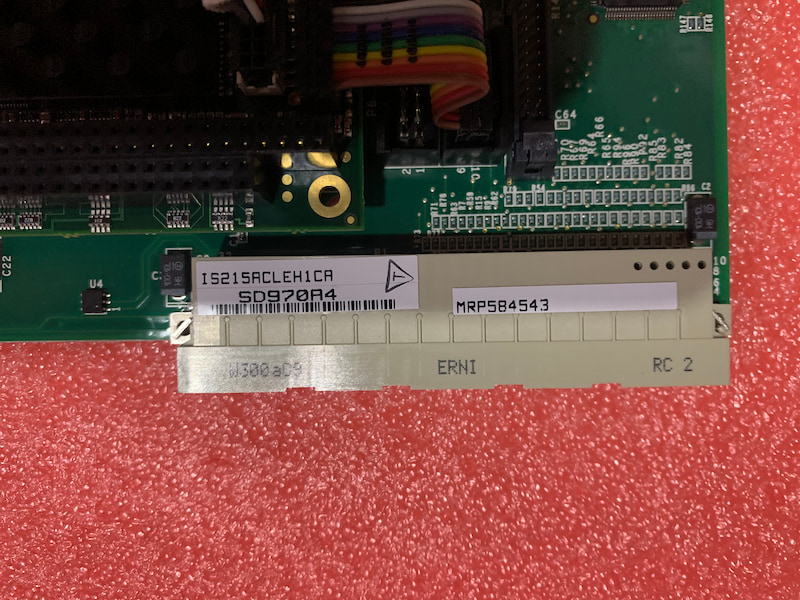

The IS215ACLEH1C Application Control Layer Module (ACL) is a microprocessorbased master controller used to perform multiple duties over communication networks such as Ethernet and ISBus. The ACL mounts in a standard Innovation Series drive or EX2100 exciter board rack and occupies two half-slots. The ACL and board rack are located in the control cabinet. In drive applications, the ACL's P1 connector (4-row 128-pin) plugs into the Control Assembly Backplane Board (CABP). In the EX2100 exciter, the ACL mounts in the Exciter Backplane (EBKP).

The ACL can be ordered in two different I/O configurations as follows:

• IS215ACLAH1C Module with one 10BaseT Ethernet port and two serial communication ports (COM1 and COM2), as used in the EX2100

• IS215ACLIH1C Module with one 10BaseT Ethernet port, two serial communication ports (COM1 and COM2), and two ISBus ports

Optional hardware accessories are available. These items must be ordered separately from the ACL and include the following:

• Serial adapter cable (336A4929G1)

• Serial cable (336A3582P1)

Primary features of the ACL core software include:

• Control block ware language and library

• Online application configuration loading

• I/O points and internal Booleans forcing

• Diagnostics for broken run/start permissives

• Application level alarm messages

• Non-volatile flash memory

• Toolbox interface and support through Ethernet

• Application control for Innovation Series drives

Hardware Features

• Central processing unit (CPU)

• Peripheral component interconnect (PCI) controller

• 128 K byte level 2 cache

• 8 MB dynamic random access memory (DRAM)

• 4 MB flash memory basic input/output system (BIOS)

• Ethernet

• Bus target interface

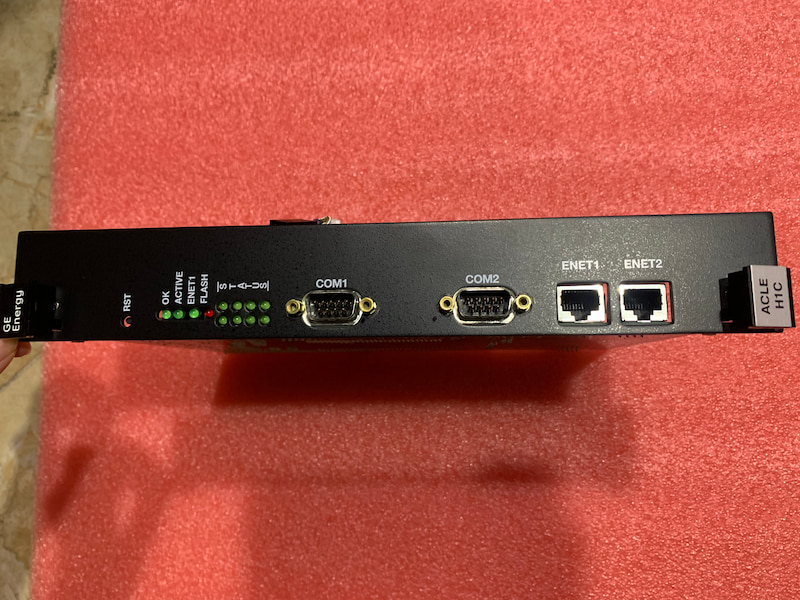

• Serial ports COM1 and COM2

• Ethernet

• ISBus communication ports (IS215ACLI only)

Technical Specifications
