GE DS200SDCIG1A DC Power Supply And Instrumentation Board

GE DS200SDCIG1A DC Power Supply And Instrumentation Board

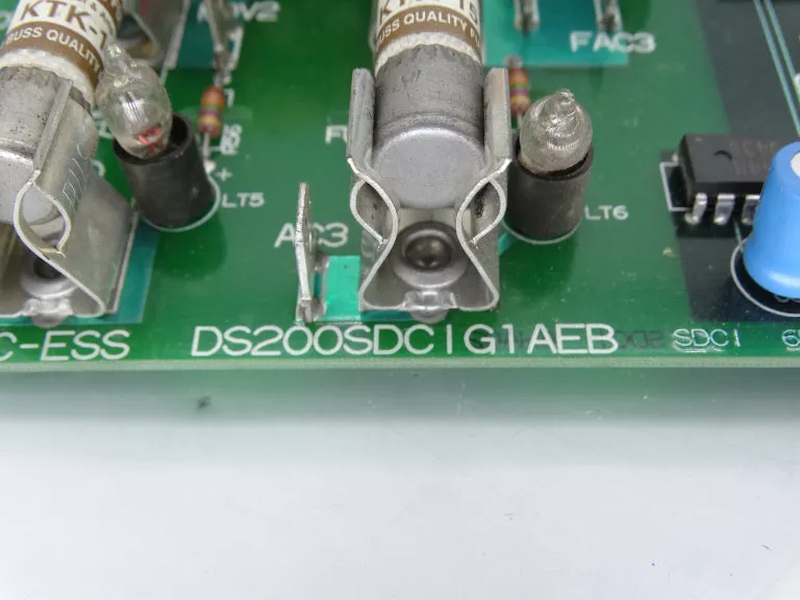

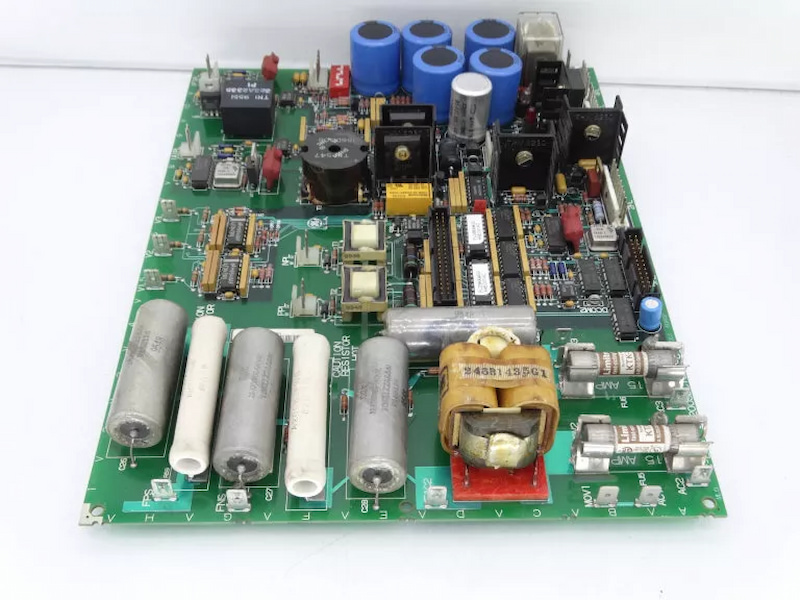

The DS200SDCIG1A DC Power Supply and Instrumentation Board (SDCI) provides logic power and interface circuitry for the DC2000 drive. The board includes the following circuits:

• +5 V dc, 4 A, ±15 V dc, 0.4 A; ±24 V dc, and 115 V ac, 0.4 A power supplies

• Motor field power circuits (except the SCR module)

• Driver circuits for the armature SCR gating

• Circuits to monitor numerous ac line and dc motor signals, including:

- Armature current and voltage

- Field current

- Ac line currents, voltage magnitude, and phase sequence

There are two group numbers of the SDCI. The G1 version of the board includes circuits for an internal ≤10 A field exciter, the G2 version is used with external field exciters.

The SDCI board receives 38 V ac (±10%) from the control power transformer (CPT). This voltage is rectified and filtered to produce the unregulated ±24 V dc outputs. The +24 V dc output is rated at 3 A, the -24 V dc output is rated at 1 A. Of these, 0.5 A is available for external loading.

Regulators on the SDCI derive ±15 V dc from the ±24 V dc supplies. The ±15 V dc outputs are rated at 0.4 A, of which 0.25 A is available for external loading .

The SDCI also generates a +5 V dc, 4 A output from the +24 V dc supply. The /PSEN signal on connector 2PL goes to a TTL low state when the +5 V dc supply is in regulation: the signal goes high if the supply goes out of regulation. When high, /PSEN is used to generated a microprocessor reset on the SDCC card.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
