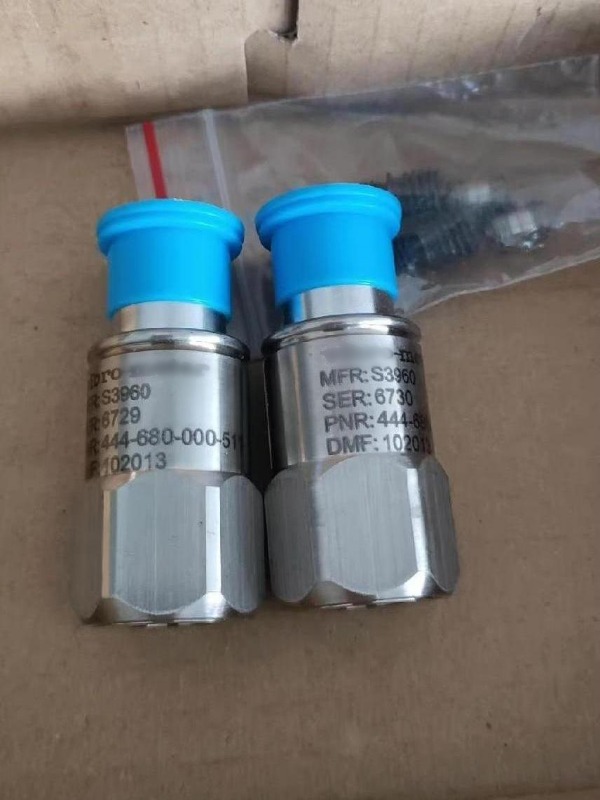

CE680 444-680-000-511 Piezoelectric Accelerometer With Integrated Electronics

CE680 444-680-000-511 Piezoelectric Accelerometer With Integrated Electronics

Functional Description

The CE 680 M511 is an all-purpose vibration sensor designed for use in harsh industrial machinery

environments. It uses the industry standard 2-wire voltage transmission technique with a constant current

supply. The output signal has a sensitivity of

100 mV/g.

Thanks to the accelerometer's isolated ground and internal shield, no ground loops or frame voltage are

present to disturb the measurement.

The CE 680 M511 shows extremely low noise levels and exceptional bias voltage stability at elevated

temperatures.

Features

· Frequency response

1 Hz to 9 kHz: ±10%

0.5 Hz to 14 kHz: -3 dB

· Shear mode operation, therefore no output due to thermal transients

· Hermetically sealed for harsh environments

· Case insulated, internally shielded

· ESD protection

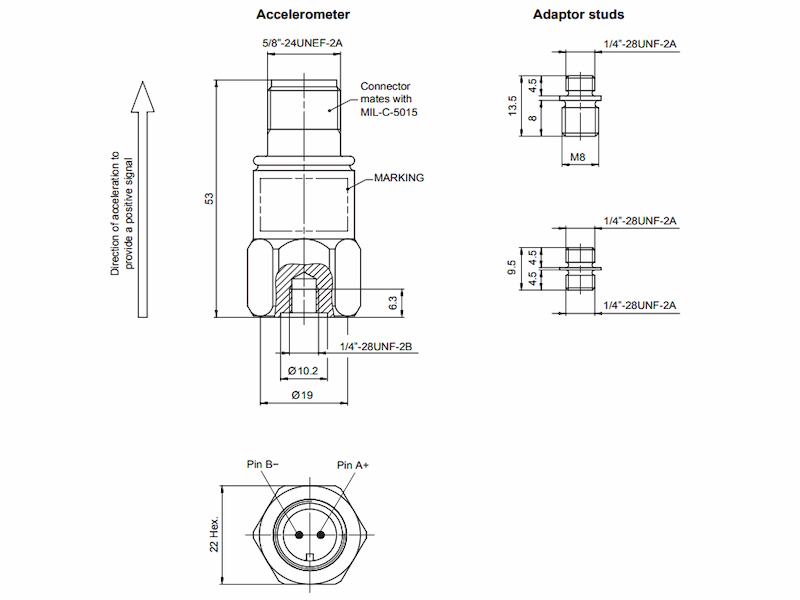

Mechanical Drawing

Technical Specifications
