The CMC 16 Condition Monitoring Card is the central element designed for Condition Monitoring System (CMS).
Brand :
VMPart number :
CMC16 200-530-022-014Description :
Condition Monitoring CardOrigin :
SwitzerlandCondition :
NewDimension :
262 mm x 187 mm x 20 mmWeight :
0.35 kgPayment :
Bank Transfer

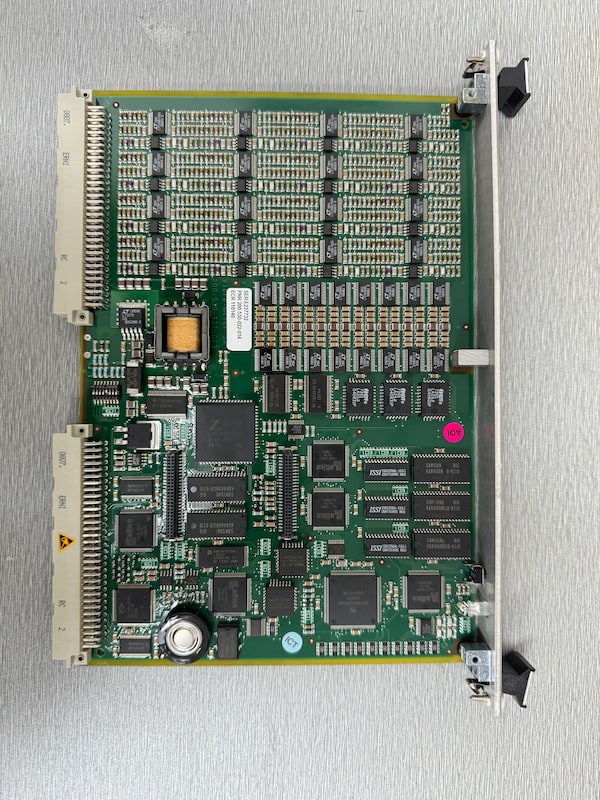

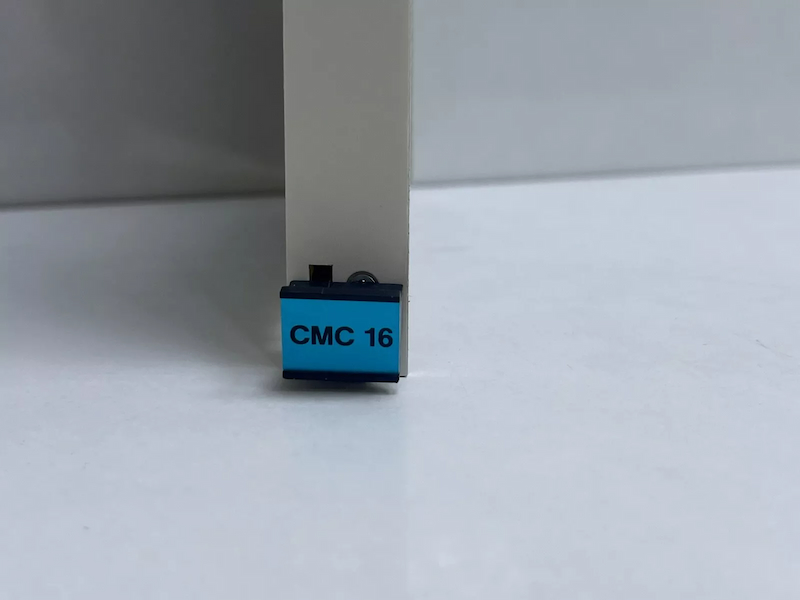

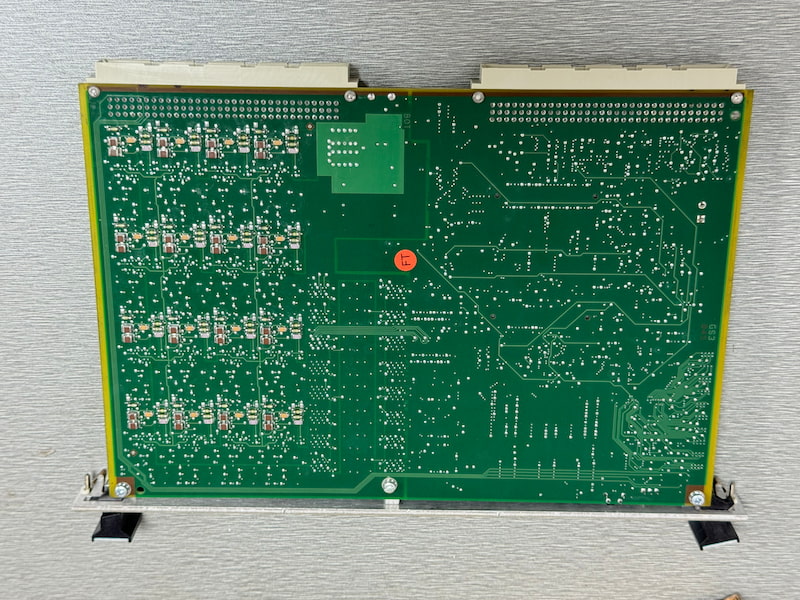

CMC16 200-530-022-014 Condition Monitoring Card
Functional Description
The CMC 16 Condition Monitoring Card is the central element in designed for Condition Monitoring System
(CMS).
This intelligent front-end Data Acquisition Unit (DAU) is used in conjunction with the CMS software to
acquire, analyse and transmit results to a host computer via the CPUM module with Ethernet controller or
directly via serial links.
The CMC 16 acquires and processes high-resolution data captured at scheduled intervals or on alarm
detection (waveforms, spectra and orbits). Spectral resolution, frequency span or order span, window type,
averaging mode and number of averages are fully configurable. The capacity also exists to trigger extended
capture of time-based data over several minutes using an‘Oscilloscope Mode’as this can provide
valuable data, particularly during machine start-up.
Features
• 16 individually configurable dynamic channels
• 16 parallel programmable anti-aliasing filters and ADCs
• First 4 channels also configurable as tacho inputs
• Last 12 channels also configurable as process values
• VME architecture
• Configurable Synchronous and Asynchronous sampling
• High resolution 3200- line FFT
• 10 fully configurable frequency bands per channel
• 6 configurable alarms per band with hysteresis deadbands
• Schedule, ‘on-alarm’ and ‘on exception’ based logging
• Ethernet and Serial RS-485 communication options
• On-board buffer storage
• Status indication by 3-colour LED on front panel
• Live insertion / removal of cards with automatic configuration
Technical Specifications
Manufacturer | VM |
Part Number | CMC16 |
Ordering Information | 200-530-022-014 |
Product Catalog | Vibration Monitoring |
Description | Condition Monitoring Card |
Voltage | 24 Vdc |
Current | 1 A |
Dimensions | 262 mm x 187 mm x 20 mm |
Weight | 0.35 kg |
