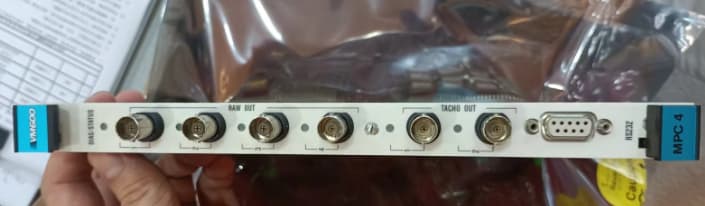

MPC4 200-510-071-113 Machinery Protection Card

The MPC4 mechanical protection card is the centerpiece of the mechanical protection system.

This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.

KEY FEATURES AND BENEFITS

• Continuously online machinery protection card

• Real-time measurement and monitoring using state-of-the-art DSP techniques

• 4 dynamic signal channels and 2 tachometer (speed) channels, all individually programmable

• Programmable broad-band and narrow-band filters

• Simultaneous amplitude and phase monitoring in order-tracking mode

• Programmable Alert, Danger and OK set points

• Adaptive Alert and Danger levels

• Front-panel LEDs indicate status and alarms

• Integrated power supplies for sensors and signal conditioners such as IEPE accelerometers and proximity measurement systems

• Live insertion and removal of cards (hot-swappable)

• Available in “standard”, “separate circuits” and “safety” (SIL) versions

MPC4 200-510-071-113  Technical Specifications
