CA306 144-306-000-321 Piezoelectric Accelerometer

CA306 144-306-000-321 Piezoelectric Accelerometer

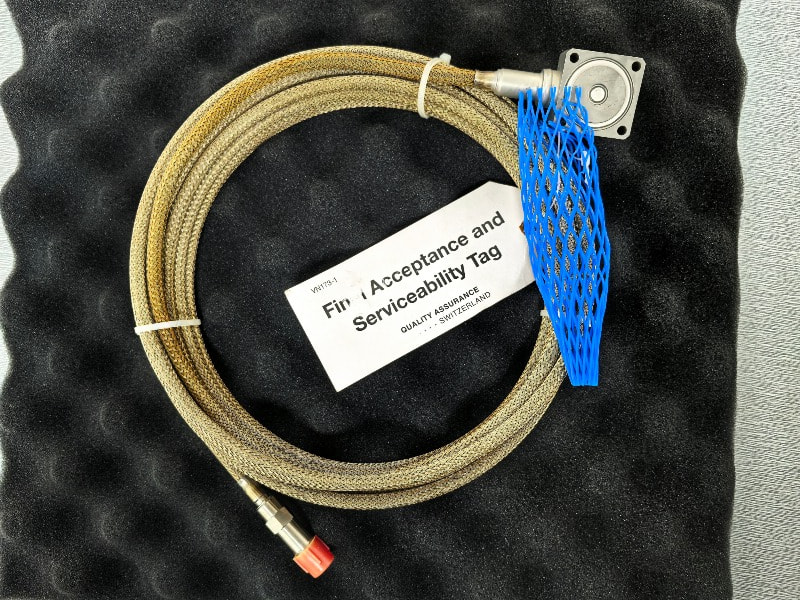

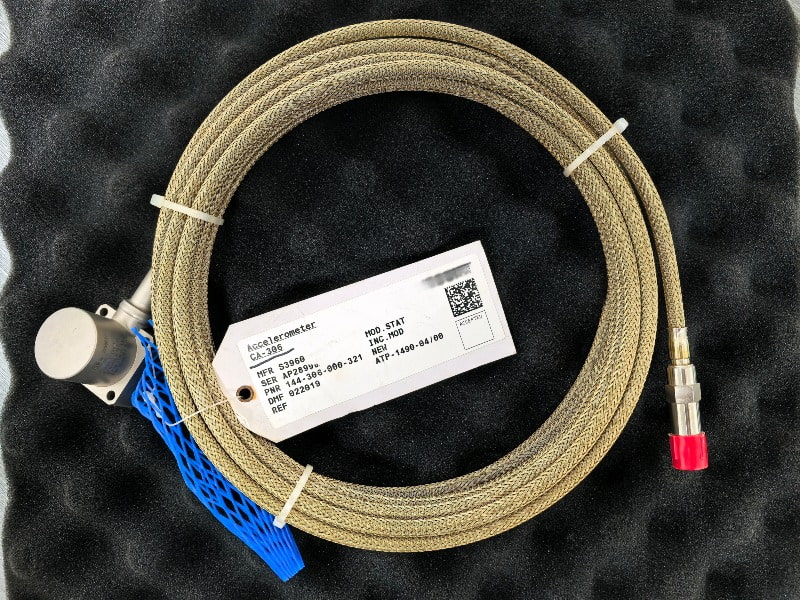

The CA306 144-306-000-321 is a Piezoelectric Accelerometer designed for high temperature gas turbine applications.

  • Brand :

    VM
  • Part number :

    CA306 144-306-000-321
  • Description :

    Piezoelectric Accelerometer
  • Origin :

    Switzerland
  • Condition :

    New
  • Dimension :

    6 m
  • Weight :

    1.5 kg
  • Payment :

    Bank Transfer
Contact Us:



CA306 144-306-000-321 Piezoelectric Accelerometer



Functional Description



The CA 306 series of high temperature accelerometers has been designed specifically for gas turbine

applications.



The accelerometers feature a rugged design with hermetically sealed connectors.



An integral mineral insulated (MI) cable with stainless steel overbraid ensures signal integrity even in the

most hostile environments.



The differential output signal minimizes noise pick-up due to electrical ground potentials.



A version with side connector is available when an integral cable is not required.



Features



· Continuous operation up to 500°C

· High output of 50 pC/g

· Improved transverse frequency resonance

· 4-hole mounting according to ARINC Characteristic 554

· Certified for use in potentially explosive atmospheres

· Construction: Hermetically welded Inconel 600 superalloy

· Frequency response: 5 Hz to 3 000 Hz



Technical Specifications



Manufacturer VM
Part Number CA306
Ordering Information 144-306-000-321
Product Catalog Vibration Monitoring
Description Piezoelectric Accelerometer
Voltage 24 Vdc
Current 1 A
Dimensions 6 m
Weight 1.5 kg



CA306 144-306-000-321



144-306-000-321
