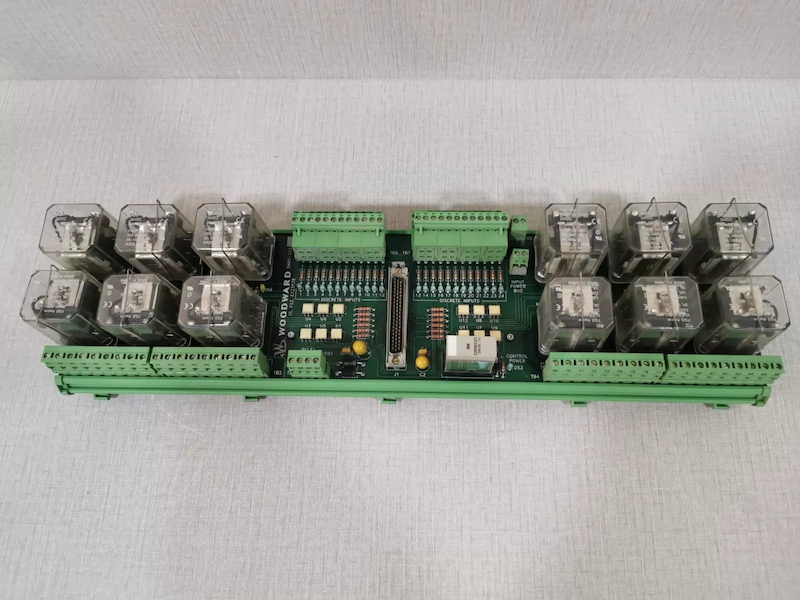

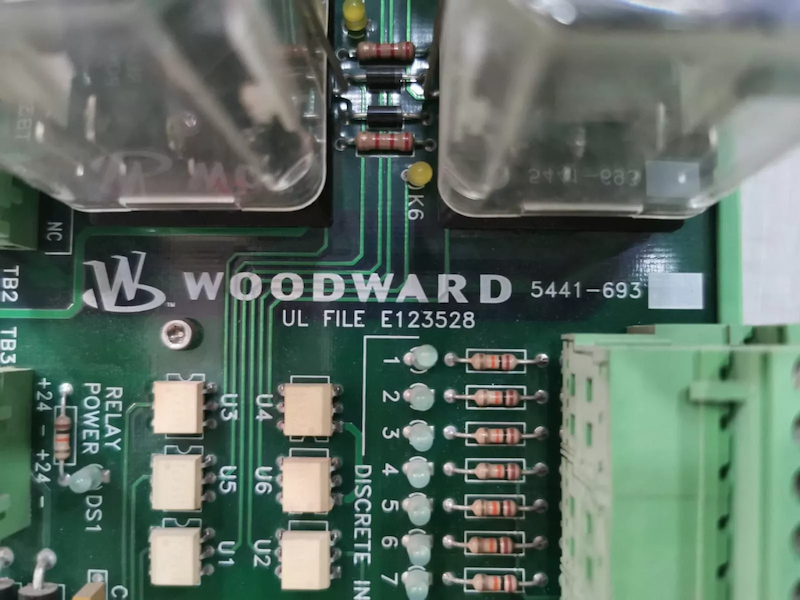

Woodward 5441-693 Discrete I/O Module

Woodward 5441-693 Discrete I/O Module

The 5441-693 Discrete I/O Module is used with 48/24 Discrete Combo Module. The 5441-693 Discrete Module has 24 discrete inputs connections and 12 SPDT relay outputs. Two relay modules connect to one 48/24 Discrete Combo Module. Each FTM uses one MicroNet High Density Analog/Discrete cable to connect it with the 48/24 Discrete Combo Module.

This relay module incorporates an I/O lockout relay that will de-energize all of the relays if de-activated by the I/O lock signal from the DO module. All field connections use removable connectors for ease in replacing module in the field. All relays are field replaceable.

Relays Output Rating:

10 A @ 28 Vdc Resistive

3 A @ 150 Vdc Resistive

10 A @ 115 Vac Resistive

10 A @ 240 Vac Resistive

3 A @ 28 Vdc Inductive

1.2 A @ 150 Vdc Inductive

6 A @ 115 Vac Inductive

3 A @ 240 Vac Inductive

Technical Specifications
