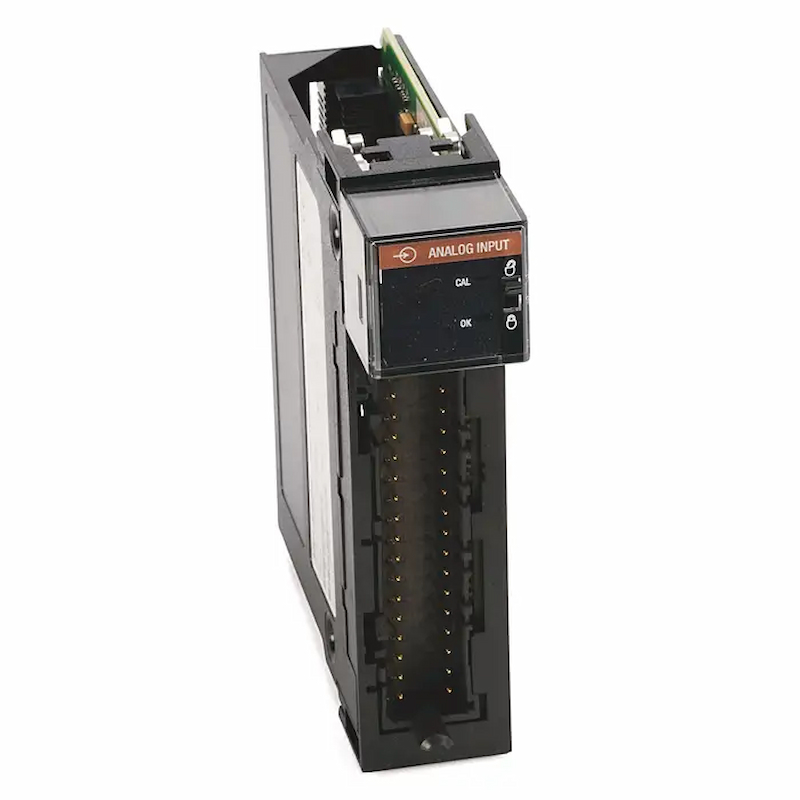

Allen-Bradley 1756-IF8 ControlLogix 8 Point Analog Input Module

Allen-Bradley 1756-IF8 ControlLogix 8 Point Analog Input Module

1756-IF8. Analog Input - Current/Voltage 8 Pts (36. ControlLogix. Analogue input module. Input 8 x 0-20mA/+-10V. 16 bit resolution.Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.

  • Brand :

    Allen-Bradley
  • Part number :

    1756-IF8
  • Description :

    Analog Input Module
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    18 mm × 22 mm × 5 mm
  • Weight :

    0.35 kg
  • Payment :

    Bank Transfer
Contact Us:

Allen-Bradley 1756-IF8 ControlLogix 8 Point Analog Input Module



Control Logix analog I/O modules are interface modules that convert analog signals to digital values for inputs and convert digital values to analog signals for outputs. Controllers can then use these signals for control purposes.



Using the producer/consumer network model, Control Logix analog I/O modules produce information when needed while providing additional system functions.



Allen-Bradley 1756-IF8

1756-IF8 Specifications

Number of Inputs 8 single ended, 4 differential or 2 differential (high speed)
Module Location 1756 ControlLogix Chassis
Backplane Current 150mA @ 5.1V dc & 40mA @ 24V dc
Backplane Power 2.33W
Power Dissipation within Module 1.73W – Voltage
2.53W – Current
Thermal Dissipation 5.9 BTU/hr. – Voltage
8.6 BTU/hr. – Current
Input Range and Resolution +/-10.25V – 320µV/count (15 bits plus sign bipolar)
0-10.25V – 160µV/count (16 bits)
0-5.125V – 80µV/count (16 bits)
0-20.5mA – 0.32µA/count (16 bits)
Common Mode Voltage Range +/- 10.25V (20.5V between any two input terminals)
Data Format Left justified, 2s complement – Integer mode
IEEE 32 bit – Floating point mode
Input Impedance >1meg – Voltage
249 – Current
Open Circuit Detection Time Positive full scale reading within 5s – Differential Voltage
Negative full scale reading within 5s – Single-ended/Differential Current
Even numbered channels go to positive full scale reading within 5s, odd numbered channels go to negative full scale reading within 5s – Single-ended voltage
Overvoltage Protection 30V dc – Voltage
8V dc – Current
Normal Mode Noise Rejection(1) >80dB at 50/60Hz
Common Mode Noise Rejection >100dB at 50/60Hz
Calibrated Accuracy Better than 0.05% of range – Voltage
Better than 0.15% of range – Current
Calibration Interval 12 months
Input Offset Drift with Temperature 90µV/°C
Gain Drift with Temperature 15 ppm/°C – Voltage
307.5µV/°C for +/-10.25V range; 153.8µV/°C for 0-10.25V range; 76.9µV/°C for 0-5.125V range
20 ppm/°C – Current
+/-0.41µA/°C
Module Error over Full Temperature Range(2) 0.1% of range – Voltage
0.3% of range – Current
Module Conversion Method Sigma-Delta
Isolation Voltage
User to system
250V
100% tested at 2550 dc for 1s
Module Scan Time for All Channels (Sample
Rate Module Filter Dependent)
16 to 488ms – 8-point single ended
8 to 244ms – 4-point differential
5 to 122ms – 2-point differential -
RTB Screw Torque (Cage clamp) 4.4 inch-pounds (0.4Nm)
Module Keying (Backplane) Electronic
RTB Keying User defined
Field Wiring Arm and Housing 36 Position RTB (1756-TBCH or TBS6H)(3)
Conductors
Wire Size
Category
#22 to #14 AWG (0.324 to 2.08 sq. mm) stranded (2)
3/64 inch (1.2mm) insulation maximum
2(4), (5)
Screwdriver Width for RTB 1/8 inch (3.2mm) maximum



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.
