Woodward 5441-691 Relay Module

Woodward 5441-691 Relay Module

This 5441-691 16 Channel Relay Module can be used with several different discrete output modules, The 16 Channel Relay Module is connected to the DO Module via a Low Density Discrete Cable.

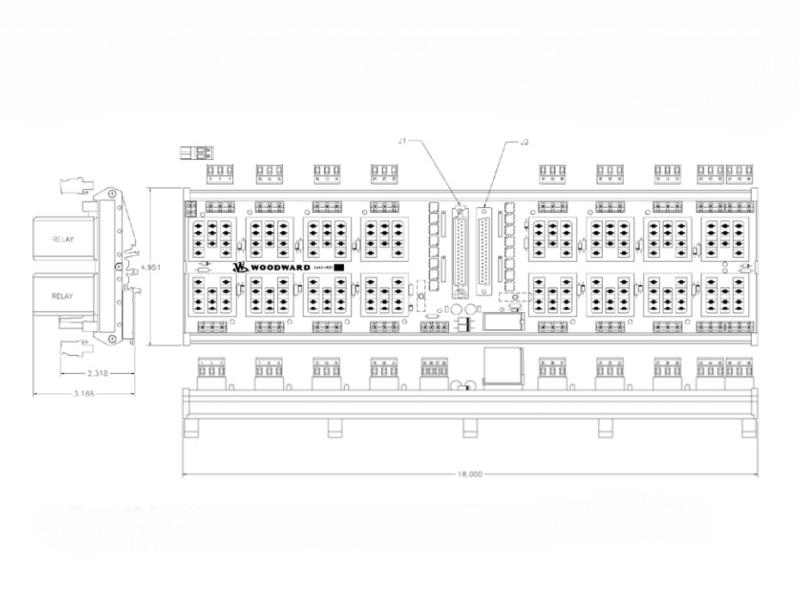

It can then be daisy-chained to another relay module using another Low Density Discrete Cable if desired. The J1 connector connects to the DO module and the J2 connector connects to the J1 on the next relay module. This relay module incorporates an I/O lockout relay that will de-energize all of the relays if de-activated by the I/O lock signal from the DO module. All field connections use removable connectors for ease in replacing module in the field. All relays are field replaceable.

Replacement Relays

16 relays, DPDT, and draws 1.5 A @ 24 Vdc from its external power supply (with all 16 relays energized). It also has redundant power input capability.

Relay type: Dust-tight with magnetic blow-out

Coil rating: 80 mA @ 24 Vdc, suppressor located on circuit board

Isolation: 1000 Vrms

Relay response time: 15 ms (operate and release)

Relay life expectancy: 50 000 operations @ rated load

Replaceability: Relays are socket mounted and retained by a wire bail

Status indication: Yellow LED - Relay energized

Green LED - Relay power on

Green LED - Control power on

The external power source connected to the relay contacts should be limited to 10 A to protect the circuit board.

Contact ratings:

5.0 A @ 240 Vac, 50/60 Hz (resistive) (meets UL ratings only)

3.0 A @ 240 Vac, 50/60 Hz (inductive) (meets UL ratings only)

10.0 A @ 120 Vac, 50/60 Hz (resistive) (meets UL ratings only)

6.0 A @ 120 Vac, 50/60 Hz (inductive) (meets UL ratings only)

600 watt @ 120 Vac, 50/60 Hz (lamp) (meets UL ratings only)

3.0 A @ 150 Vdc (resistive) (meets UL ratings only)

3.0 A @ 150 Vdc (inductive) (meets UL ratings only)

10.0 A @ 28 Vdc (resistive) (meets LVD and UL ratings)

3.0 A @ 28 Vdc (inductive) (meets LVD and UL ratings)

Technical Specifications
