TQ912 111-912-000-011 Proximity Sensor

TQ912 111-912-000-011 Proximity Sensor

Functional Description

The active part of a TQ9xx proximity sensor is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. The target material must, in all cases, be metallic.

The TQ902 and TQ912 proximity sensors are essentially the same except that the TQ902 is for standard-mount and the TQ912 is for reverse mount applications. Both sensor bodies are available with metric or imperial threads and have an integral coaxial cable terminated with a self-locking miniature coaxial connector.

A TQ9xx sensor's integral cable and the EA90x extension cables are available in various lengths, which can be combined to obtain a particular total system length (TSL) for an application.

Optional interconnection protectors (IP172), junction boxes (JB118) and other housings are available for the mechanical and environmental protection of the connection between a TQ9xx sensor's integral cable and an EA90x extension cable.

Features

• Non-contact measurement based on eddy-current principle

• Available in standard versions and Ex versions certified for use in hazardous areas (potentially explosive atmospheres)

• Conforms to API 670 5th edition

• 1, 5 and 10 m chains

• Temperature-compensated design

• Voltage output or current output with short-circuit protection

• Current-signal transmission over distances up to 1 km

• Frequency response: DC to 20 kHz (−3 dB)

• Linear measurement range: 2 or 4 mm

• Temperature range (sensor): −40 to 180 °C

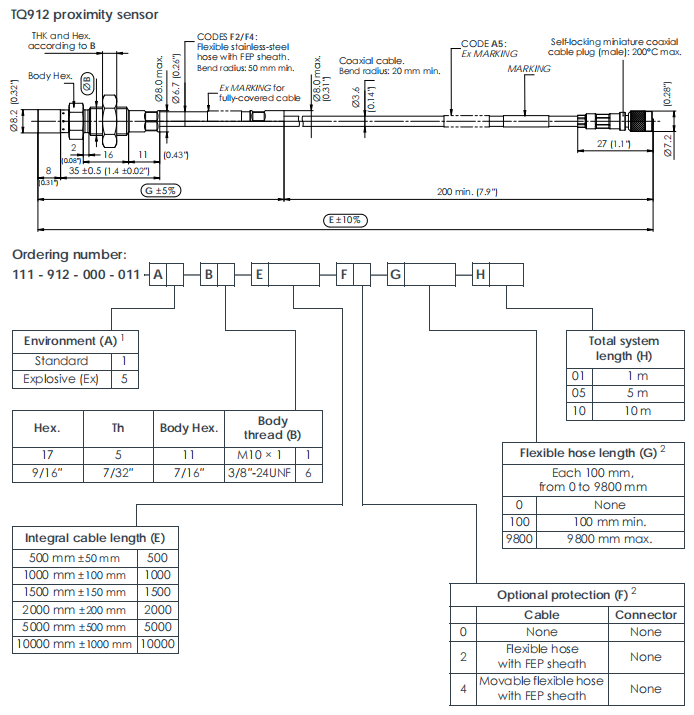

MECHANICAL DIAGRAM

Technical Specifications
