TQ412 111-412-000-012 Proximity Transducer

TQ412 111-412-000-012 Proximity Transducer

Features

» conforms to API 670 recommendations

» Non-contact measurement system based on eddy current principle

» Certified for use in potentially explosive atmospheres

» 1 m, 5 m and 10 m systems

» Temperature compensated system

» Voltage or current output with protection against short circuits

» Frequency response: DC to 20 kHz (−3 dB)

» Measuring range: 2 or 4 mm

» Temperature range: −40 to +180 °C

Functional Description

The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon ® (polyamide-imide). The transducer body is made of stainless steel. The target material must, in all cases, be metallic.

The transducer body is available with metric or imperial thread. The TQ 412 version is intended for reverse-mount applications. The TQ 402 / 412 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered

The TQ 402 and TQ 412 transducers can be matched with a single EA 402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.

The proximity system can be powered by associated signal processing modules or a rack power supply.

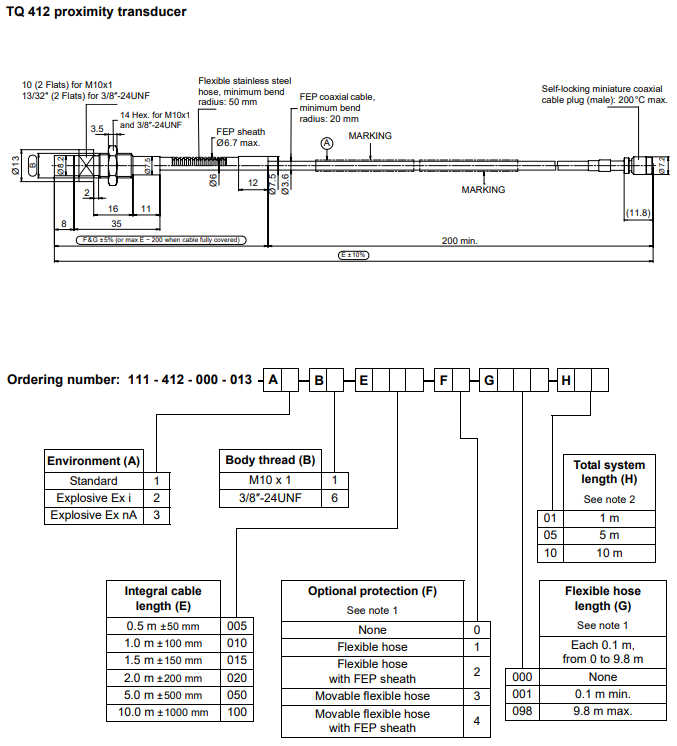

MECHANICAL DIAGRAM

Technical Specifications
