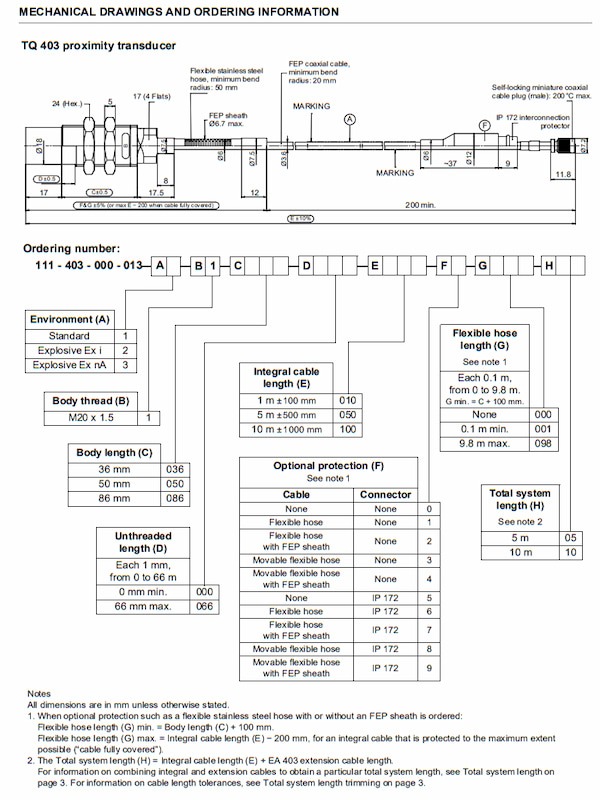

TQ403 111-403-000-013 A1-B1-C050-D000-E010-F0-G000-H05 Proximity Transducer

TQ403 111-403-000-013 A1-B1-C050-D000-E010-F0-G000-H05 Proximity Transducer

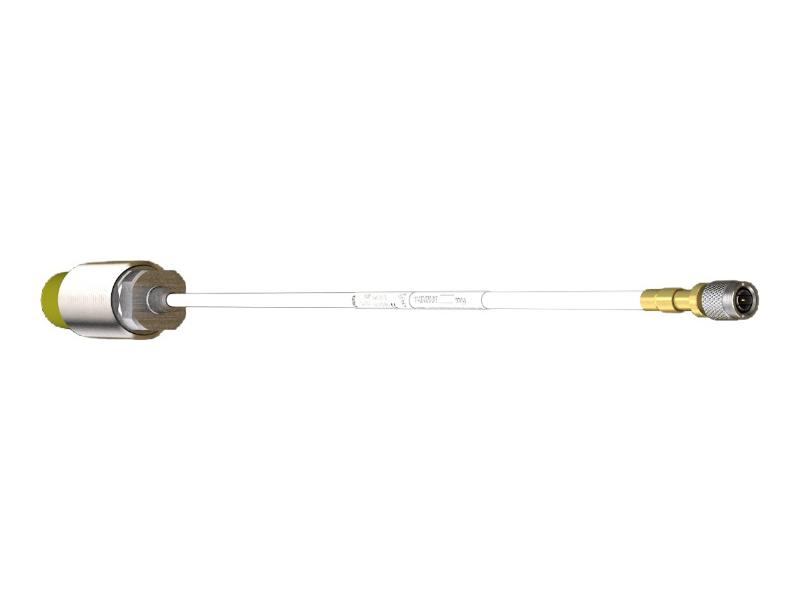

Functional Description

The TQ 403 non-contacting transducer and the matching IQS 453 signal conditioner combine to form a

calibrated proximity system in which each component is interchangeable. The system outputs a voltage

proportional to the distance between the transducer tip and the target (e.g. machine shaft).

The active part of the proximity probe is a coil of wire that is moulded inside the tip of the transducer, which

is made of Torlon (Polyamide-imide). The transducer body is made of stainless steel. The target material

must, in all cases, be metallic.

The transducer body is available with metric or English thread. The transducer has an integral coaxial cable,

terminated with an AMP-type connector. Various cable lengths (integral and extension) may be ordered.

Due to the characteristics of the coaxial cable, an "electrical trimming" of the nominal length of the integral

and extension cables is necessary to optimize the system performance and the transducer interchangeability.

The TQ 403 proximity transducer can be matched with the EA 403 extension cable. Optional junction boxes

and housings offer mechanical protection of the integral and extension cable connectors.

Features

- Measuring range: 12 mm

- Temperature range: -40°C to +180°C

- Sensitivity: 1.33 mV/µm

- Frequency response: DC to 20 kHz

Technical Specifications
