The IQS900 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer.
Brand :
VMPart number :
IQS900 204-900-000-011 A5-B23-C1-H05-I0Description :
Signal ConditionerOrigin :
SwitzerlandCondition :
NewDimension :
79.4 mm x 54 mm x 36.5 mmWeight :
200 gPayment :
Bank Transfer

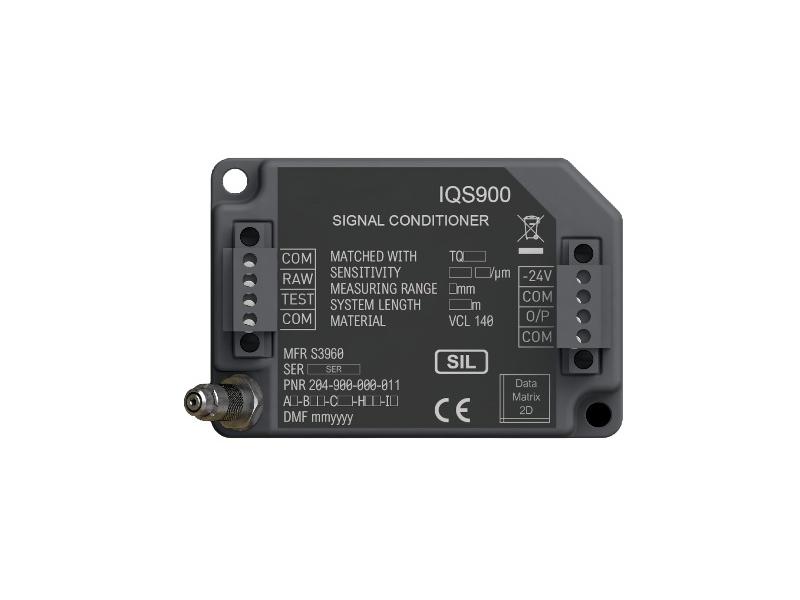

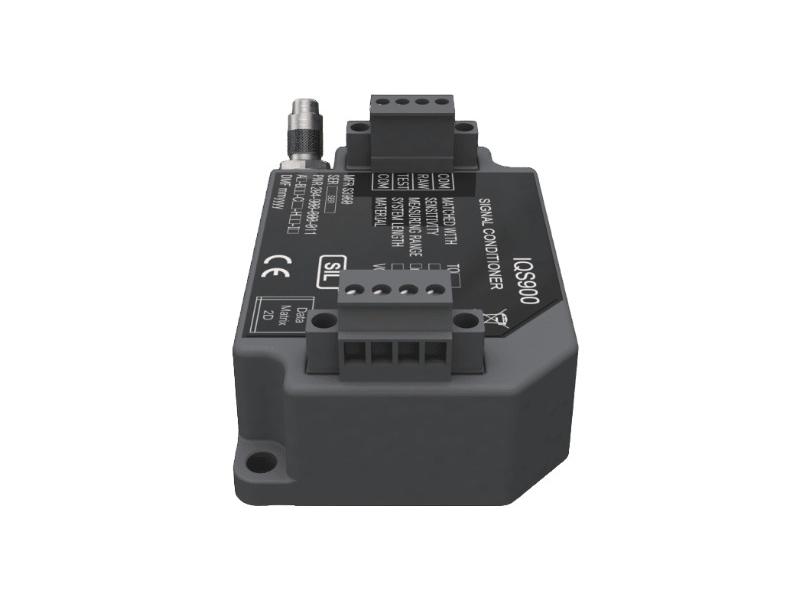

IQS900 204-900-000-011 A5-B23-C1-H05-I0 Signal Conditioner
Functional Description
The IQS900 signal conditioner performs all required signal processing and generates the output signal
(current or voltage) for input to a machinery monitoring system.
In addition, the IQS900 supports optional diagnostic circuitry that continuously runs health checks on the
components of the measurement chain in order to automatically detect and remotely indicate any problems
Features
• Non-contact measurement system based on eddy-current principle
• Ex certified versions for use in hazardous areas (potentially explosive atmospheres)
• Conforms to API 670 recommendations
• 5 and 10 m systems
• Temperature-compensated design
• Voltage or current output with protection against short circuits
• Frequency response: DC to 20 kHz (−3 dB)
• Measurement range: 12 mm
• Temperature range: −40 to +180 °C
Technical Specifications
| Manufacturer | VM |
| Part Number | IQS900 |
| Ordering Information | 204-900-000-011 A5-B23-C1-H05-I0 |
| Product Catalog | Vibration Monitoring |
| Description | Signal Conditioner |
| Voltage | 24 Vdc |
| Current | 25 mA |
| Dimensions | 79.4 mm x 54 mm x 36.5 mm |
| Weight | 200 g |
