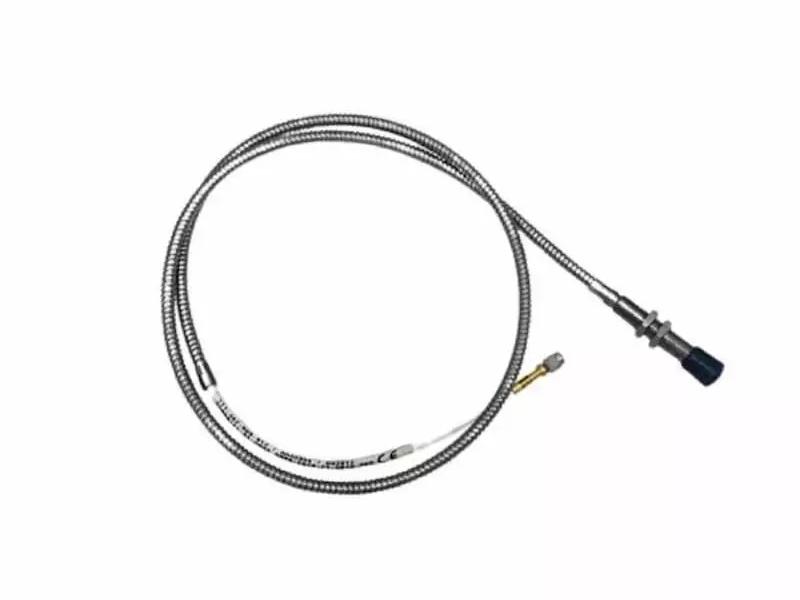

TQ402 111-402-000-013 A1-B1-C040-D000-E010-F1-G010-H05 Proximity Transducer

TQ402 111-402-000-013 A1-B1-C040-D000-E010-F1-G010-H05 Proximity Transducer

Functional Description

The TQ 402 non-contacting transducer and the matching IQS 452 signal conditioner combine to form

a calibrated proximity system in which each component is interchangeable. The system outputs a voltage

proportional to the distance between the transducer tip and the target (e.g. machine shaft).

The active part of the proximity probe is a coil of wire that is moulded inside the tip of the transducer, which

is made of Torlon (Polyamide-imide). The transducer body is made of stainless steel. The target material

must, in all cases, be metallic.

Features

- Measuring range: 2 mm or 4 mm

- Temperature range: -40°C to +180°C

- Sensitivity: 4 mV/µm or 8 mV/µm

- Frequency response: DC to 20 kHz (-3 dB)
