IPC704 244-704-000-042 A1-B01-C10-D50-E2-F10000-G0-H0-I0 Signal Conditioner

IPC704 244-704-000-042

IPC704 244-704-000-042 A1-B01-C10-D50-E2-F10000-G0-H0-I0 Signal Conditioner

The IPC 704 is a signal conditioner For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors.

  • Brand :

    VM

  • Part number :

    IPC704 244-704-000-042 A1-B01-C10-D50-E2-F10000-G0-H0-I0

  • Description :

    Signal Conditioner

  • Origin :

    Switzerland

  • Condition :

    New

  • Dimension :

    79.4 mm x 54 mm x 36.5 mm

  • Weight :

    170 g

  • Payment :

    Bank Transfer
Inquiry now
Contact Us:
categories



IPC704 244-704-000-042 A1-B01-C10-D50-E2-F10000-G0-H0-I0 Signal Conditioner



Functional Description



The IPC 704 signal conditioner transforms the charge-based signal coming from the pressure transducer into

a current-modulated signal or a voltage-modulated signal.



The IPC 704 is usually enclosed in an "ABA 160" type waterproof industrial housing made of insulating

polyester, and is intended for Ex applications (use in potentially explosive atmospheres). Two stuffing glands

assure waterproofness between the cable assembly, the signal conditioner and the transmission cable.



Features



» Configurable high-pass and low-pass filters

» Frequency range: 0.5 Hz to 20 kHz

» Optional integrator to produce a velocity output

» Optional 2-wire current or 3-wire voltage transmission

» Certified for use in potentially explosive atmospheres

» A range of installation options are available

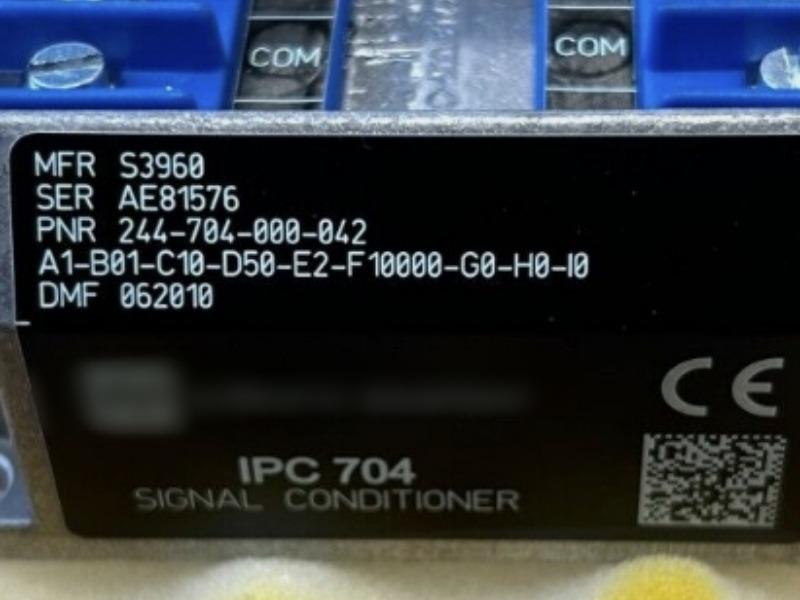

IPC 704 signal conditioner

Technical Specifications



Manufacturer VM
Part Number IPC704

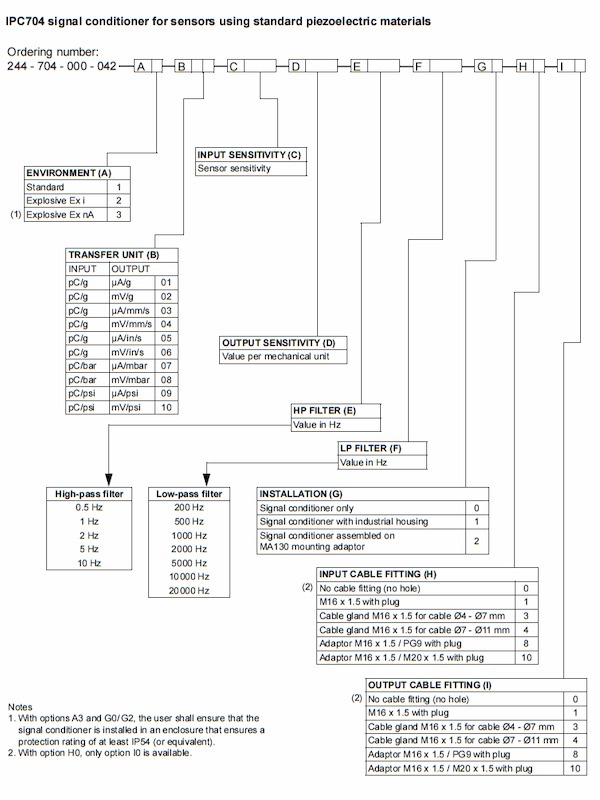

Ordering Information 244-704-000-042 A1-B01-C10-D50-E2-F10000-G0-H0-I0
Product Catalog Vibration Monitoring
Description Signal Conditioner
Voltage 24 Vdc
Current 25 mA
Dimensions 79.4 mm x 54 mm x 36.5 mm
Weight 170 g





IPC 704
