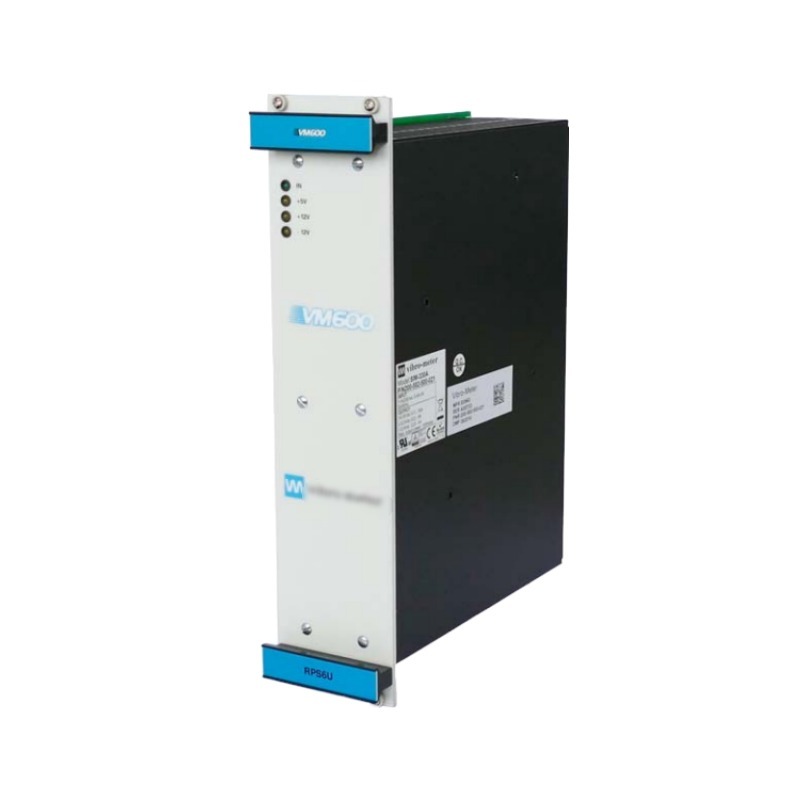

RPS6U 200-582-200-013 Rack Power Supply

RPS6U 200-582-200-013 Rack Power Supply

• From the VM® product line

• Power supply for VM ABE04x 19″ system racks with a height of 6U

• Input: AC-input and DC-input versions

• Outputs: +5 VDC and ±12 VDC

• Output over-voltage, short-circuit and overload protection

• Status indicators

• High-power, high-performance, highefficiency

• Minimal derating within the operating temperature range

Applications:

• VM machinery protection and or condition monitoring systems

• One RPS6U rack power supply powers a full rack of modules (cards)

• Two RPS6U rack power supplies enable rack power supply redundancy

Functional Description:

The RPS6U rack power supplies are designed for use in the VM series of machinery protection systems and condition and performance monitoring systems.

A VM RPS6U rack power supply is installed in the front of a VM ABE04x system rack (19″ system racks with a standard height of 6U) and connects via two high-current connectors to the VME bus of the rack's backplane.

The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack's backplane.

Either one or two VM RPS6U rack power supplies can be installed in a VM ABE04x system rack. A rack with one RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50°C (122°F).

Alternatively, a rack can have two RPS6U power supplies installed in order to either support rack power supply redundancy or in order to supply power to the modules (cards) non-redundantly over a wider range of environmental conditions.

A VM ABE04x system rack with two RPS6U power supplies installed can operate redundantly (that is, with rack power supply redundancy) for a full rack of modules (cards). This means that if one RPS6U fails, the other will provide 100% of the rack's power requirement so that the rack will continue to operate, thereby increasing the availability of the machinery monitoring system.

A VM ABE04x system rack with two RPS6U power supplies installed can also operate non-redundantly (that is, without rack power supply redundancy). Typically, this is only necessary for a full rack of modules (cards) in applications with operating temperatures above 50°C (122°F), where RPS6U output power derating is required.

Technical Specifications
