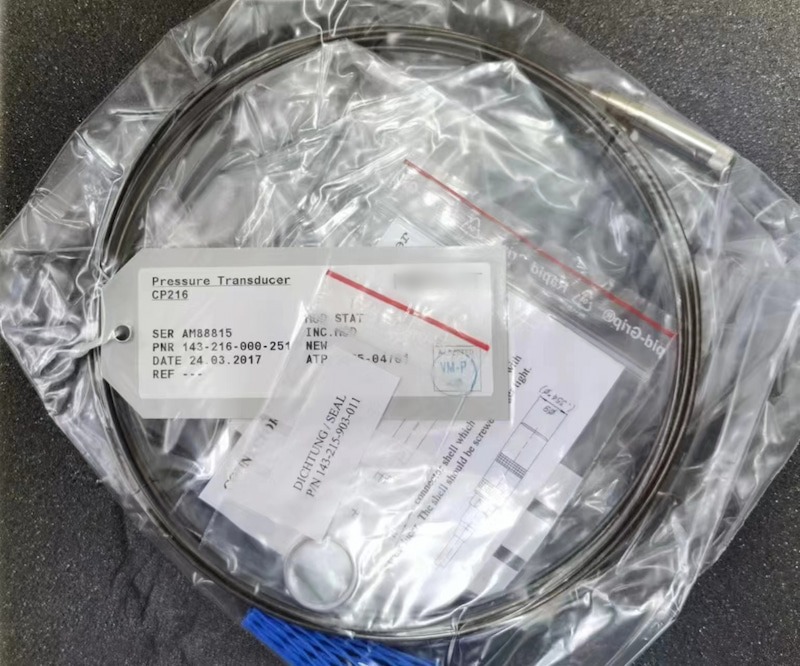

CP216 143-216-000-251 Piezoelectric Pressure Transducer

CP216 143-216-000-251 Piezoelectric Pressure Transducer

Features:

» Extreme temperature capability: −70 to 520°C

» High-pressure capability: up to 350 bar

» Pressure sensitivity: 200 pC/bar

» Frequency range: 2 Hz to 15 kHz

» Internal case insulation

» Certified for use in potentially explosive atmospheres

Applications

» Dynamic pressure monitoring over a wide temperature range, requiring high reliability

Functional Description

The use of man-made piezoelectric material in the CP216 a compression-mode dynamic pressure transducer produces an extremely stable device.

The CP216 is designed for long-term monitoring or development testing over wide temperature ranges in extreme environments, such as gas turbines.

The transducer is fitted with an integral mineral insulated (MI) cable with twin conductors that is terminated with either a LEMO connector or a VM high-temperature connector. Cable assemblies are available to connect the transducer to an IPC704 signal conditioner.

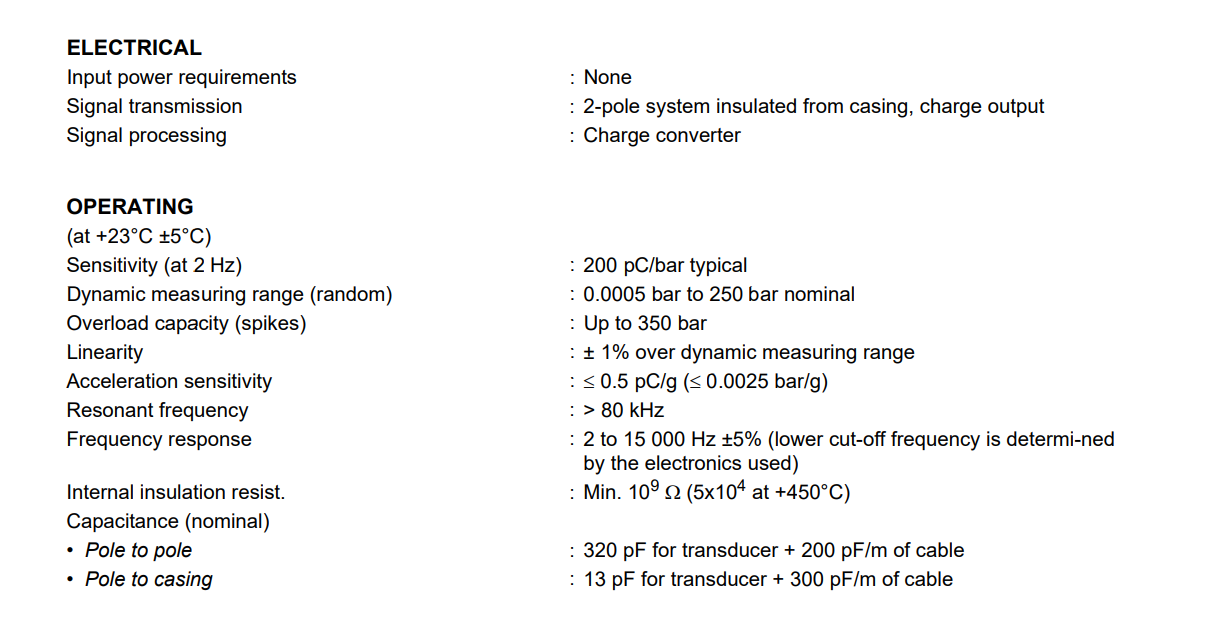

Technical Specifications
