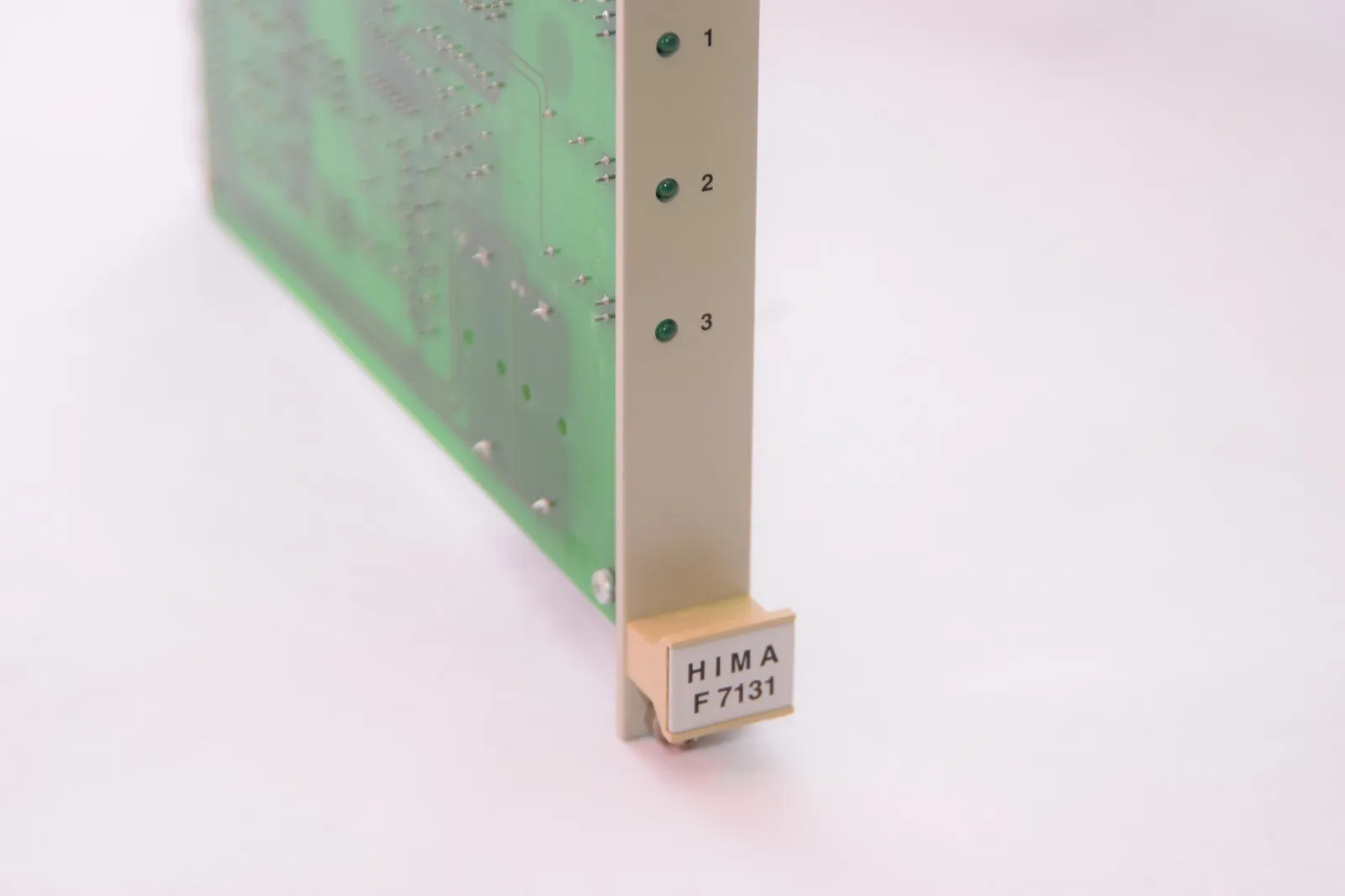

The F7131 is a power supply monitoring module with buffer batteries made by HIMA. It's used to monitor the health and stability of a power supply system.
Brand :
HimaPart number :
F7131Description :
Power Supply MonitoringOrigin :
GermanyCondition :
NewDimension :
20.3 cm x 12.7 cm x 2.5 cmWeight :
0.2 kgPayment :
Bank Transfer
F 7131: Power supply monitoring with buffer batteries for PES H51q

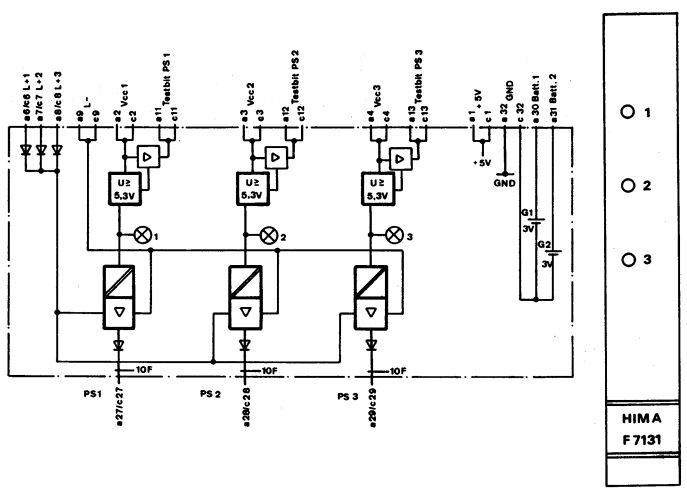

The module F 7131 monitors the system voltage 5 V generated by the 3 power supplies max. as follows:
· 3 LED-displays at the front of the module
· 3 test bits for the central modules F 8650 or F 8651 for the diagnostic display and for the operation within the user's program
· For the using within the additional power supply (assembly kit B 9361) the function of the power supply modules in it could be monitored via 3 outputs of 24 V (PS1 to PS 3)
Note: Battery change is recommended every four years.
Type of battery: CR-1/2 AA-CB,
HIMA part no. 44 0000016.
Space requirement 4TE
Operating data 5 V DC: 25 mA
24 V DC: 20 mA
Technical Specifications
| Manufacturer | Hima |
| Part Number | F 7131 |
| Ordering Information | F 7131 |
| Product Catalog | PES H51q |
| Description | Power Supply Monitoring |
| Voltage | 24 Vdc |
| Current | 25 mA |
| Dimension | 20.3 cm x 12.7 cm x 2.5 cm |
| Weight | 0.2 kg |
