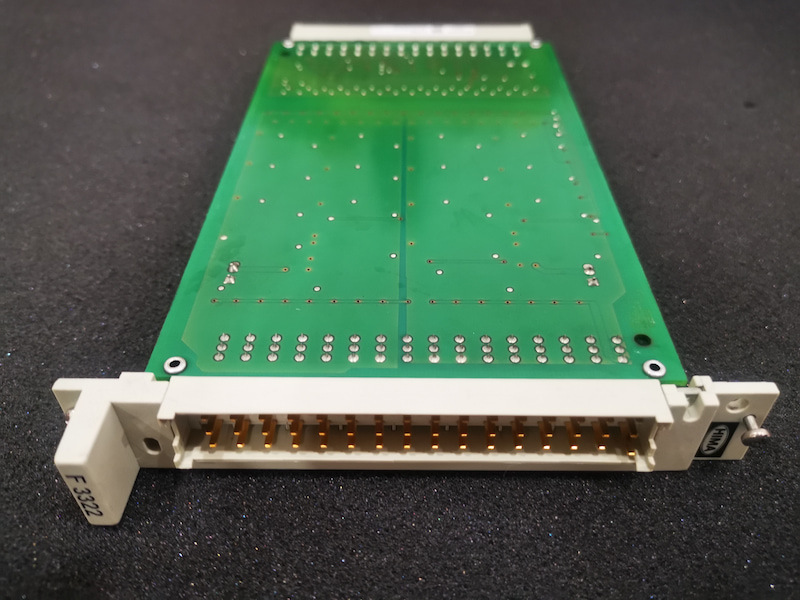

Hima F3322 16-Channel Fold Output Module

Planning hint

Only max. 10 output modules with nominal load may be used in one IOsubrack and not more than half of the possible output load of 16 x 0.5 A =8 A may be switched on at the same time. The standard fusing of the modules in the IO rack is 4 A slow.

Outputs                                           k short circuit proof

Response value for

 current limiter                                > 550 mA

Space requirements                        4 TE

Operating data                                5 V DC: 110 mA

                                                        24 V DC: 150 mA in addition load

All output modules have the following special features:

· To increase the availability the outputs of the safety related output modules can be switched in parallel without external diodes.

· No output voltage occurs when the supply voltage L- should be cut on the output module, so it is not necessary to wire the L- as a ring feeder.

· The connection of inductive loads can be done without using diodes at the coil. However it is recommended to connect a diode directly at the inductive load avoiding noise voltages.

· The LED signal ling the output status is controlled separately.

· The design of the cable plugs enables the two pole connection of the actuators. Together with a two pole supply of the output module an earth fault detection will be simplified.

· No time limit for operation in case of a defective output module.
