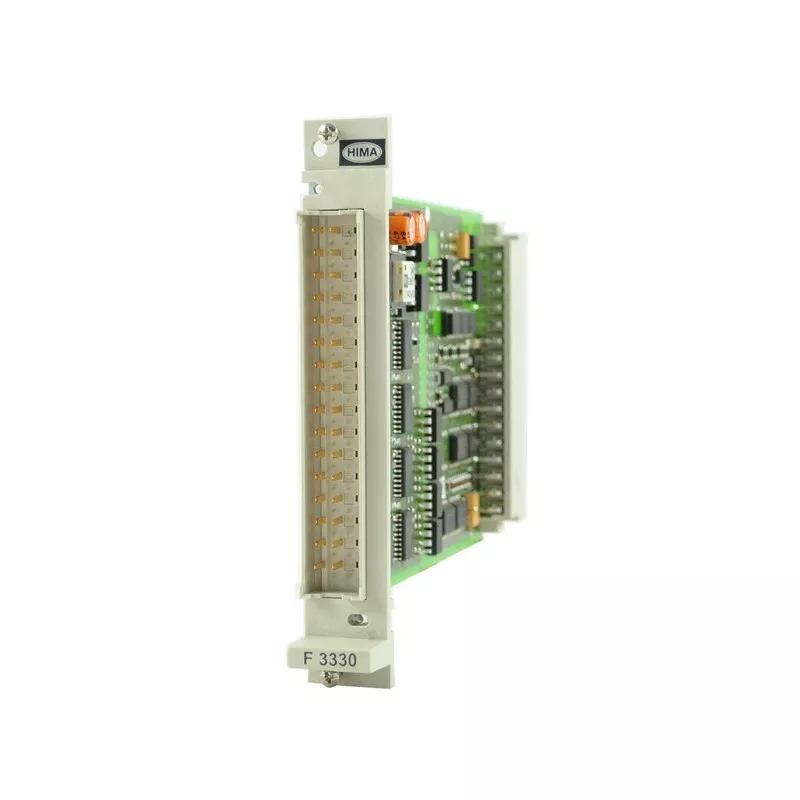

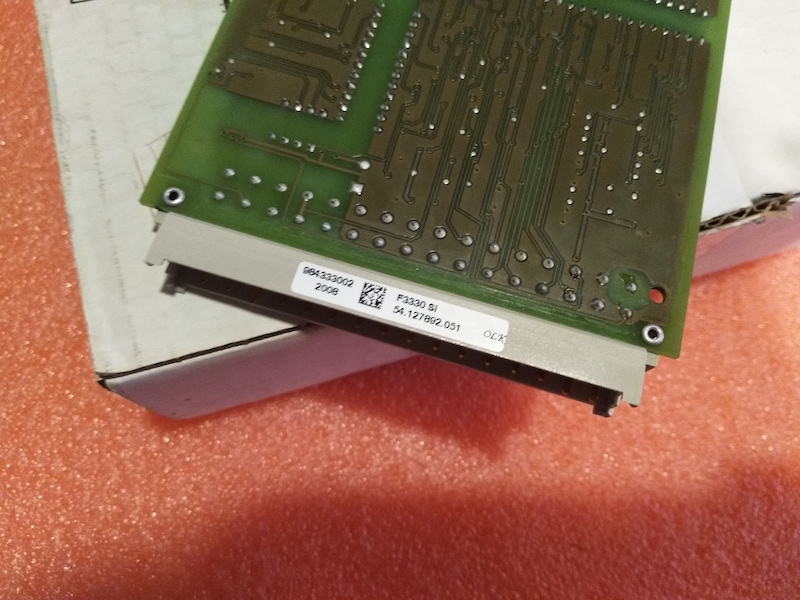

Hima F3330 8 Fold Output Module

F 3330 | HIMA 8-Channel Output Module

Description

F3330 is a product number for an 8-channel output module manufactured by HIMA, which is used for safety-related applications. The module can handle resistive loads or inductive loads up to 500 mA and lamp connections up to 4 W. It has an integrated safety shutdown and safe isolation, and no output signal when the L-power requirement class AK 1 is interrupted. The outputs are 500 mA and short circuit proof [0].

 》》safety related:

resistive load or inductive load up to 500 mA (12 W), lamp connection up to 4 W, with integrated safety shutdown, with safe isolation, no output signal with break of the L- supply requirement class AK 1 ... 6

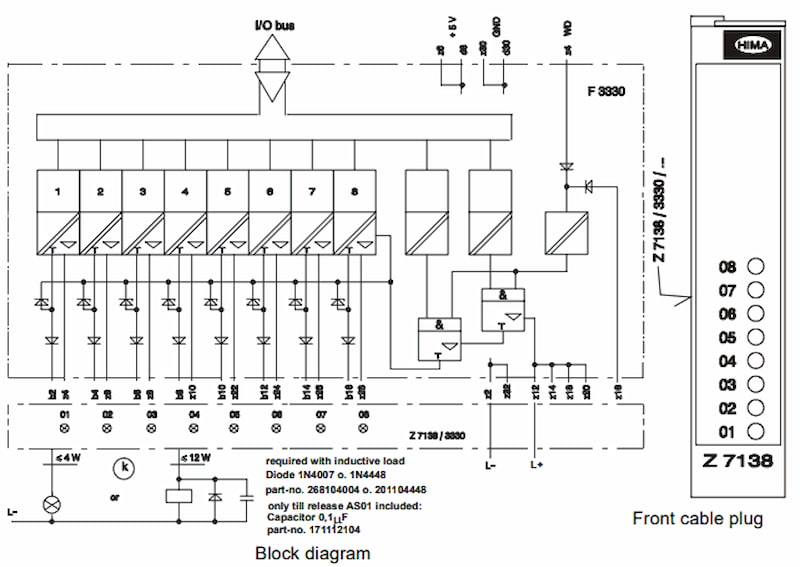

The module is automatically tested during operation. The main test routines are:

· Reading back of the output signals. The operating point of the 0 signal read back is ≤ 6.5 V. Up to this value the level of the 0 signal may arise in case of a fault and this will not be detected.

· Switching capability of test signal and cross-talking (walking-bit test).

Outputs                                                    500 mA, k short circuit proof

Internal voltage drop                                max. 2 V at 500 mA load

Admissible line resistance (in + out)         max. 11 Ohm

Under voltage tripping                              at ≤ 16 V

Operating point for

 short circuit current                                 0.75 ... 1.5 A

Output leakage current                               max. 350 µA

Output voltage if output is reset               max. 1,5 V

Duration of the test signal                        max. 200 µs

Space requirement                                   4 TE

Operating data                                         5 V DC: 110 mA

                                                         24 V DC: 180 mA in add. load

Technical Specifications
