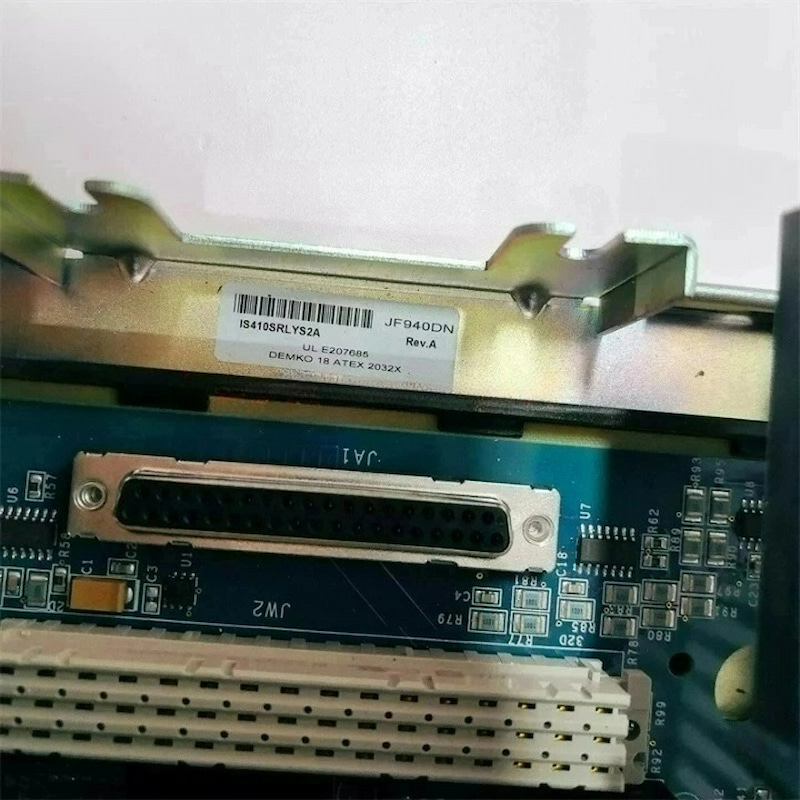

GE IS410SRLYS2A Simplex Relay Output Terminal Board

IS410SRLYS2A Simplex Relay Output Terminal Board

One SRLY group is approved for use with the YDOA: the IS410SRLYS2A terminal board has pluggable, Euro style box-type terminal blocks and two connectors that can accept a variety of optional daughterboards.

There are three optional daughterboards available to plug onto the SRLYS2A:

• IS400WROBH1A turns SRLY into the functional equivalent of the TRLYS1B. This option provides fused and sensed power distribution to the first six relays and dedicated power to the last relay.

• IS400WROFH1A puts a single fuse in series with each relay common connection. Fuse voltage feedback is included.

• IS400WROGH1A distributes power from an input connector to each relay through a single fuse. Fuse voltage feedback is included.

Technical Specifications

100% brand new and original,All the goods will be tested before shipment.

For the in stock items, we will send the order out within 5-7 days after receive the payment.

Global supplier of quality automation and control components.

Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.

Questions? Call +86 18050017653  or Email sales4@nseauto.com
