GE IS420PPNGH1A PROFINET Gateway Module

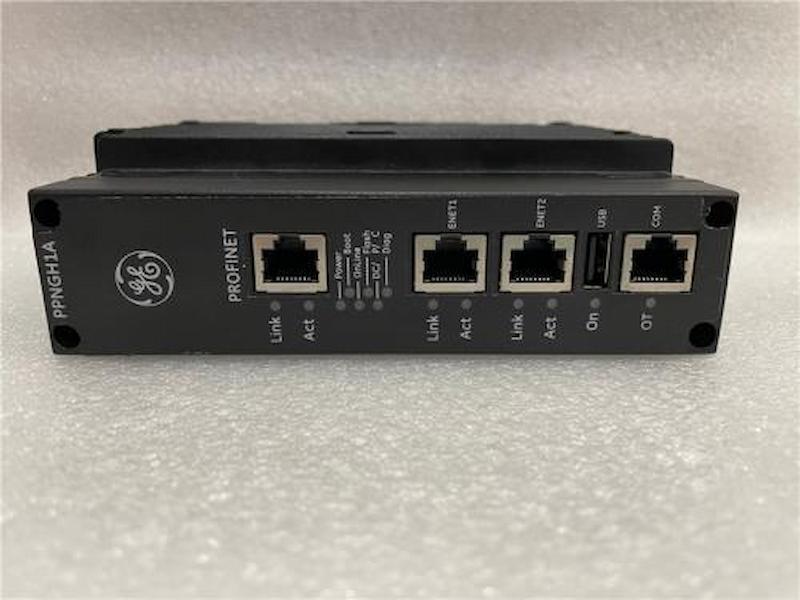

IS420PPNGH1A PROFINET Gateway Module

The PROFINET® Gateway (PPNG) module maps I/O from PROFINET Slave devices to the Mark* VIe controller on the IONet. The IS420PPNGH1A connects the Mark VIe controller to a high-speed PROFINET local area network (LAN), enabling communication with PROFINET I/O devices. The PPNG provides functions, services, and protocols required for certification as a PROFINET RT Version 2.2 I/O controller, running 100 Mbps Ethernet interfaces.

Functioning as an I/O pack, PPNG with the ToolboxST* application provides the ability to add PROFINET I/O devices and smart sensors into a typical Mark VIe control system architecture.

IS420PPNGH1A features are as follows:

• One RJ-45 shielded twisted pair 10/100 Mbps port for PROFINET communication

• Two RJ-45 shielded twisted pair 10/100 Mbps ports (ENET1, ENET2) for IONet communication

• Single module

• Built-in power supply

• No jumper settings required

• No battery or fan

• Flash memory can be conveniently updated

• Status LEDs for Ethernet, power, and processor

• Internal clock synchronized with the Mark VIe controller for time-stamped diagnostics entries

• Uses the same ControlST* configuration tools across Mark controls platforms

• Multiple PPNGs can be supported for each Mark VIe controller

• PPNG supports star (connect to switch), line (connect direct to I/O device), or mixed network topologies on the PROFINET network.

• Configuration of PROFINET I/O devices

• Cyclic exchange of input and output data from PROFINET I/O devices, asynchronous with Mark VIe controller frame

• Displays values of inputs and outputs through ToolboxST application

• Displays diagnostic messages from devices to resolve issues

The ToolboxST application is used to configure the PROFINET I/O devices. Any change in these devices requires a new configuration to be downloaded to the PPNG, then the module restarts. A local variable can be connected to a particular I/O point from the PROFINET I/O device and used in the Mark VIe controller application logic.
