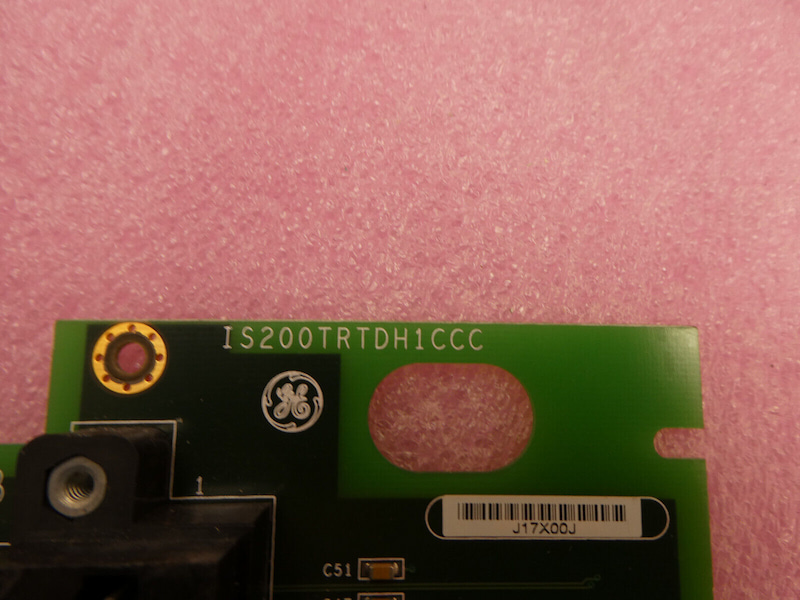

GE IS200TRTDH1C IS200TRTDH1CCC RTD Input Terminal Board

IS200TRTDH1CCC RTD Input Terminal Board

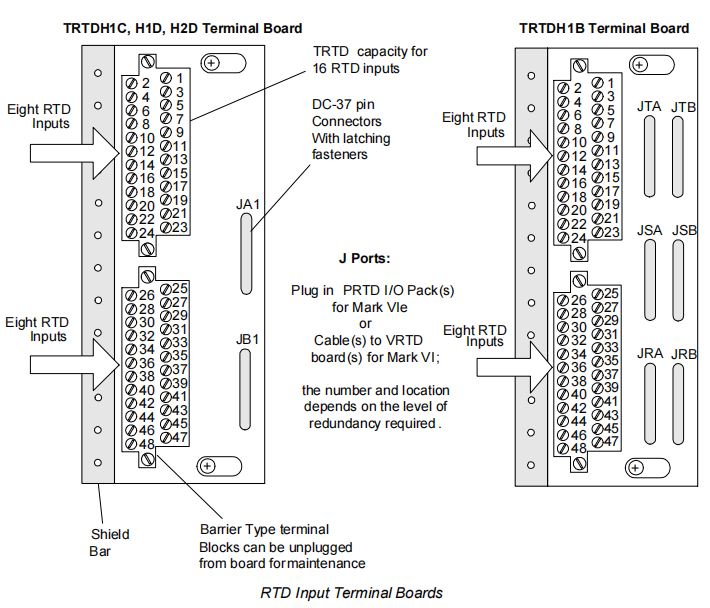

The RTD Input (TRTD) terminal board accepts 16, three-wire RTD inputs. These inputs are wired to two barrier type terminal blocks. The inputs have noise suppression circuitry to protect against surge and high frequency noise.TRTD communicates with one or more I/O processors, which convert the inputs to digital temperature values and transfer them to the controller.

There are four versions of TRTD as follows:

• TRTDH1B is a TMR version that fans out the signals to three VRTD boards using six DC-type connectors.

• TRTDH1C is a simplex board with two DC-type connectors for VRTD.

• TRTDH1D is a simplex board with two DC-type connectors for PRTD, normal scan.

• TRTDH2D is a simplex board with two DC-type connectors for PRTD, fast scan.

Mark VI Systems

In the Mark* VI system, TRTDH1B and TRTDH1C works with the VRTD processor and supports simplex and TMR applications. One TRTDH1C connects to the VRTD with two cables. In TMR systems, TRTDH1B connects to three VRTD processors with six cables.

Mark VIe Systems

In the Mark VIe system, TRTDH1D and TRTDH2D works with the PRTD I/O pack and support simplex applications only. Two PRTD packs plug into the TRTD for a total of 16 inputs.

Technical Specifications
