GE IS200TRLYH1BGF Relay Output with Coil Sensing Terminal Board

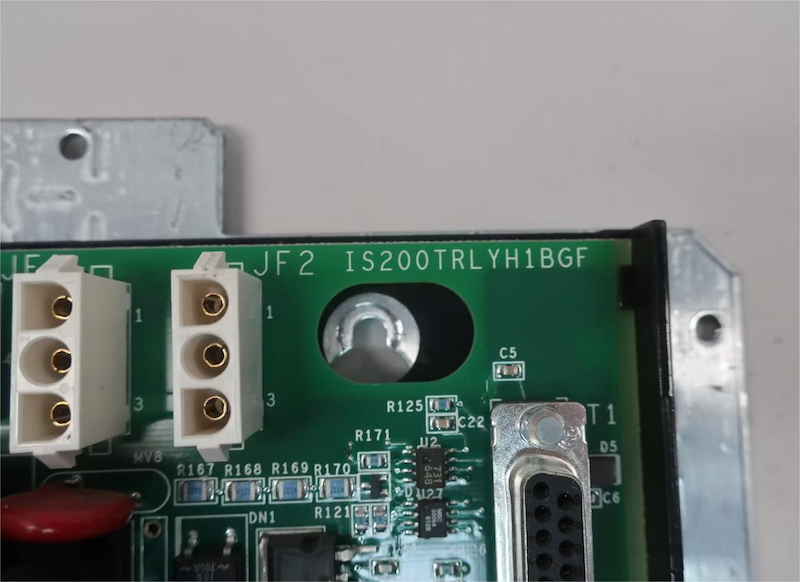

IS200TRLYH1BGF Relay Output with Coil Sensing Terminal Board

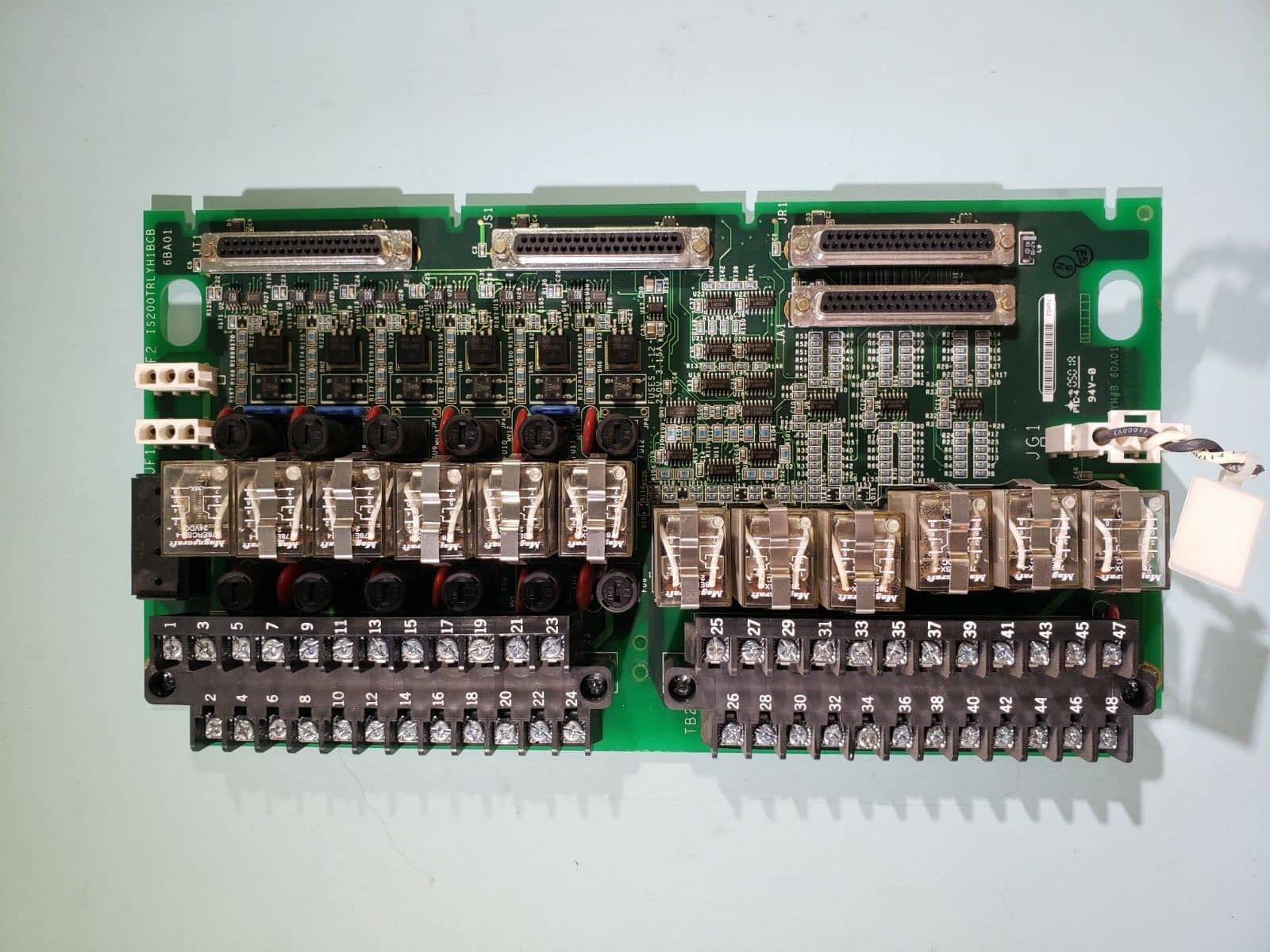

The Relay Output with coil sensing (TRLYH1B) terminal board holds 12 plug-in magnetic relays. The first six relay circuits configured by jumpers for either dry, Form-C contact outputs, or to drive external solenoids. A standard 125 V dc or 115/230 V ac source, or an optional 24 V dc source with individual jumper selectable fuses and on-board suppression, can be provided for field solenoid power. The next five relays (7-11) are unpowered isolated Form-C contacts. Output 12 is an isolated Form-C contact, used for special applications such as ignition transformers.

Installation

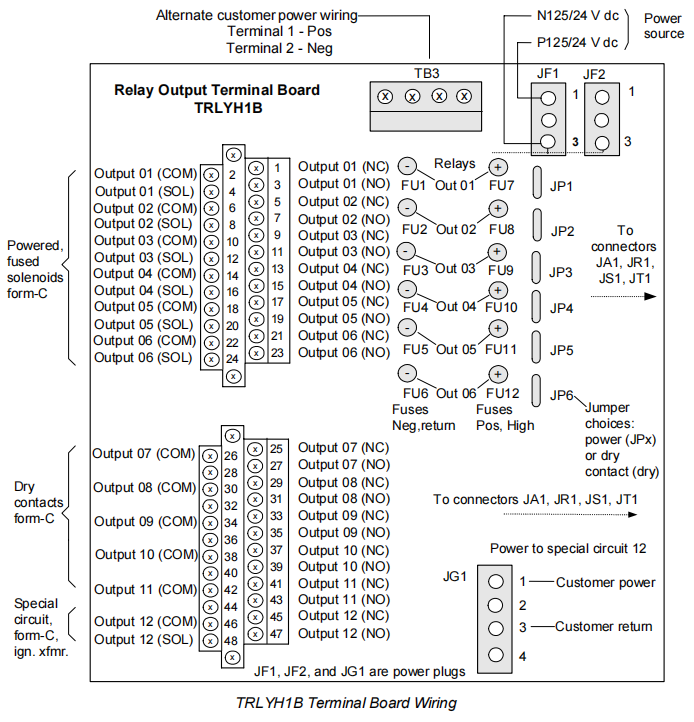

Connect the wires for the 12 relay outputs directly to two I/O terminal blocks on the terminal board as shown in the figure, TRLYH1B Terminal Board Wiring. Each block is held down with two screws and has 24 terminals accepting up to #12 AWG wires. A shield terminal strip attached to chassis ground is located on to the left side of each terminal block.

Connect the solenoid power for outputs 1-6 to JF1. JF2 can be used to daisy chain power to other TRLYs. Alternatively, power can be wired directly to TB3 when JF1/JF2 are not used. Connect power for the special solenoid,Output 12, to connector JG1.

Jumpers JP1-JP6 are removed in the factory and shipped in a plastic bag. Re-install the appropriate jumper if power to a field solenoid is required. Conduct individual loop energization checks as per standard practices and install the jumpers as required. For isolated contact applications, remove the fuses to ensure that suppression leakage is removed from the power bus.

Feature:

1.Reliable Performance: Designed for reliability and longevity, the board ensures consistent performance in demanding operational environments.

2.Integration and Compatibility: The board seamlessly integrates into existing control systems and is compatible with a wide range of industrial equipment and applications.

3.Ease of Installation: Installation and setup are streamlined, allowing for easy integration into control systems without extensive modifications or adjustments.

4.Safety Features: The board incorporates safety features such as onboard suppression and individual jumper-selectable fuses to ensure safe and reliable operation.

Technical Specifications
