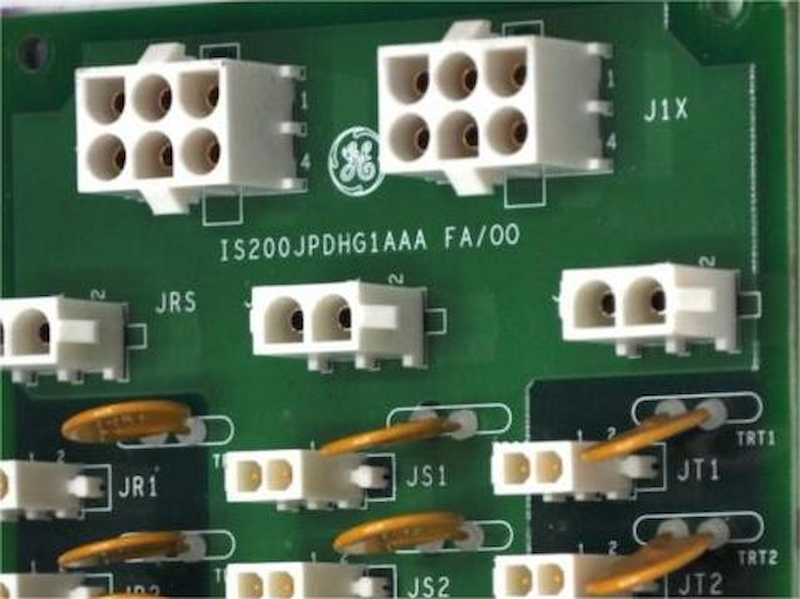

GE IS200JPDHG1A IS200JPDHG1AAA High Density Power Distribution Board

IS200JPDHG1AAA High Density Power Distribution Board

The IS200JPDHG1AAA is a High Density Power Distribution Board, manufactured and designed by General Electric as part of the Mark VIe Series used in the GE Speedtronic Control System.

The High Density Power Distribution (JPDH) board provides 28 V dc power to 24 Mark* VIe I/O packs and 3 Ethernet switches from a 28 V dc supply. Additional JPDHs can be connected in a daisy-chain arrangement to provide power to more I/O packs as required. The circuit for each I/O pack connector is protected with a positive temperature coefficient fuse device.

Installation:

Mount JPDH on a vertical surface by inserting #6 machine screws through the mounting holes at each corner of the board. Insert Mate-N-Lok connectors as described in the following figure. The 6-pin and larger 2-pin connectors have a nominal rating of 600 V and 13 A, while the smaller two-pin connectors have a nominal rating of 600 V and limited by fuse rating to 0.8 A max.

Operation:

JPDH is designed to provide TMR I/O packs with adequate 28 V dc power distribution while taking up as little space as possible. Additional JPDHs can be connected in a daisy-chain arrangement through the unfused J1X connector.

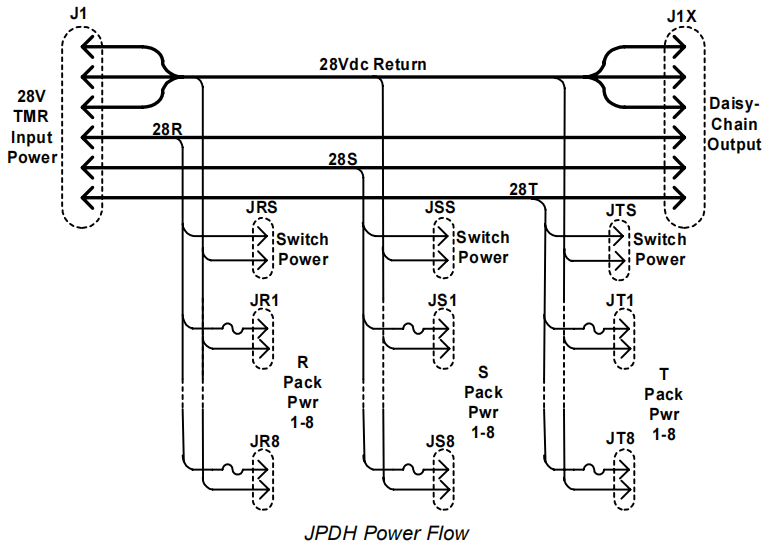

The 6-pin J1 connector brings in three separate 28 V dc feeds on three different pins for triple redundancy. The return current is common among the TMR and daisy-chain feeds and is brought in on the remaining three pins. The following figure shows how the R, S, and T 28 V dc power is distributed by JPDH to the I/O packs and Ethernet switches.

JPDH has 24 identical output circuits to provide power to the individual I/O packs. The R, S, and T feeds each provide power to eight circuits. Each I/O pack circuit includes a positive temperature coefficient fuse device for branch circuit protection. The board also has three identical unfused output circuits to provide power to each Ethernet switch.

Technical Specifications
