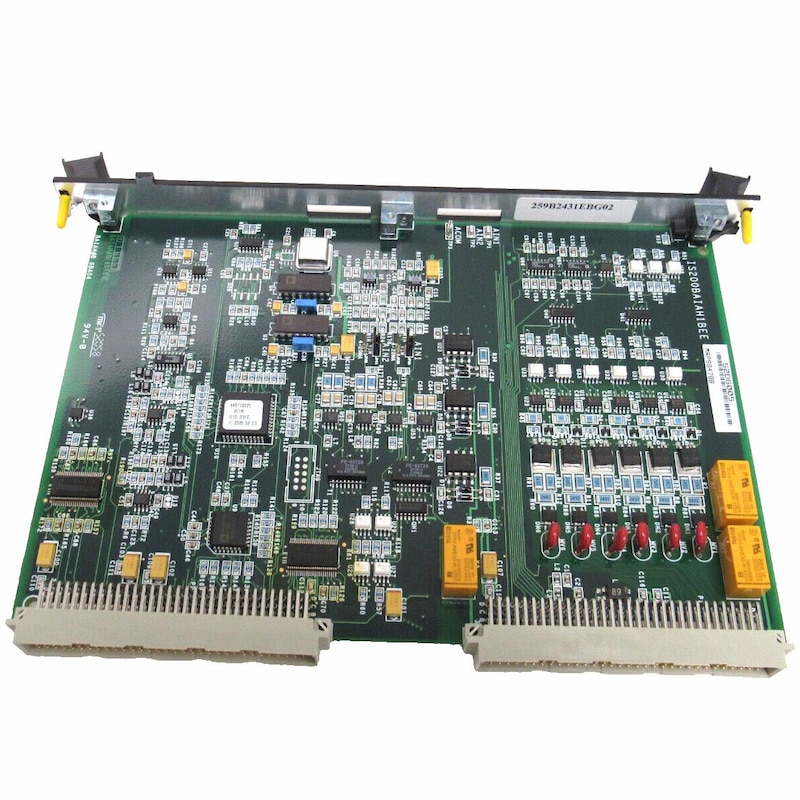

GE IS200BAIAH1B IS200BAIAH1BEE Bridge Application Interface Board

GE IS200BAIAH1B IS200BAIAH1BEE Bridge Application Interface Board

The IS200BAIAH1BEE is a Bridge Application Interface Board, it is manufactured and designed by General Electric as part of the Mark VI Series used in GE Boards & Turbine Control System.

  • Brand :

    GE
  • Part number :

    IS200BAIAH1B IS200BAIAH1BEE
  • Description :

    Bridge Application Interface Board
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    18 cm x 12 cm x 3 cm
  • Weight :

    0.8 kg
  • Payment :

    Bank Transfer
Contact Us:

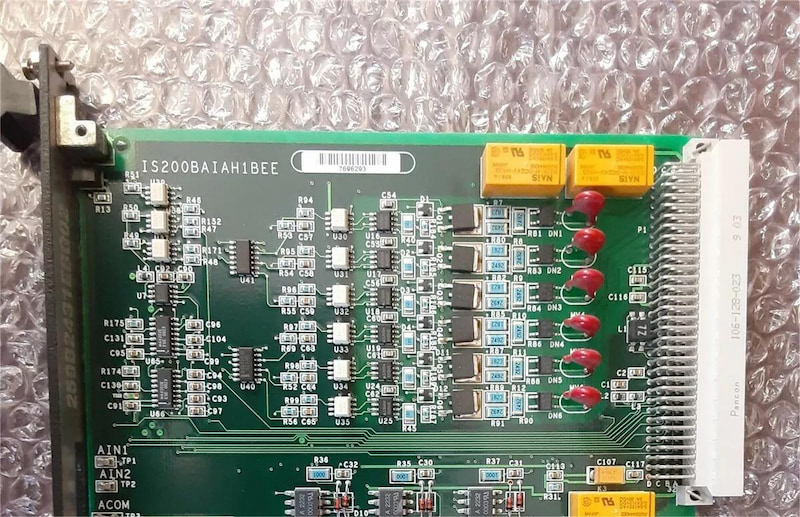

IS200BAIAH1BEE Bridge Application Interface Board



The IS200BAIAH1BEE Bridge Application Interface Board (BAIA) provides isolation and an earth ground reference for all signal inputs from user terminal boards. It outputs customizable and application to the processor board, as follows:



• Six isolated, differential, universal 115 V ac, 50/60 Hz sinusoidal (or 24−105 Vdc) discrete logic



• Three separately controlled form C relay contacts are provided for discrete outputs.



• Two bipolar (±10V) analog input channels, each with a differential amplifier followed by a synchronous voltage-controlled oscillator (VCO).



• VCO pulse trains transmitted differentially to isolate the analog inputs.



The BAIA converts digital inputs from the DSPX to analog outputs: channels A and B are available for customer use at the terminal board; channels C and D are used to drive panel meters. The BAIA provides an RS-232C I/O interface between the DSPX and the drive's keypad and PC connections.



Technical Specifications

Manufacturer GE
Part Number IS200BAIAH1BEE
Ordering Information IS200BAIAH1B
Product Catalog Mark VI
Description Bridge Application Interface Board
Voltage 115 Vac
Frequency
50/60 Hz
Dimensions 18 cm x 12 cm x 3 cm
Weight 0.8 kg



GE IS200BAIAH1BE



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
