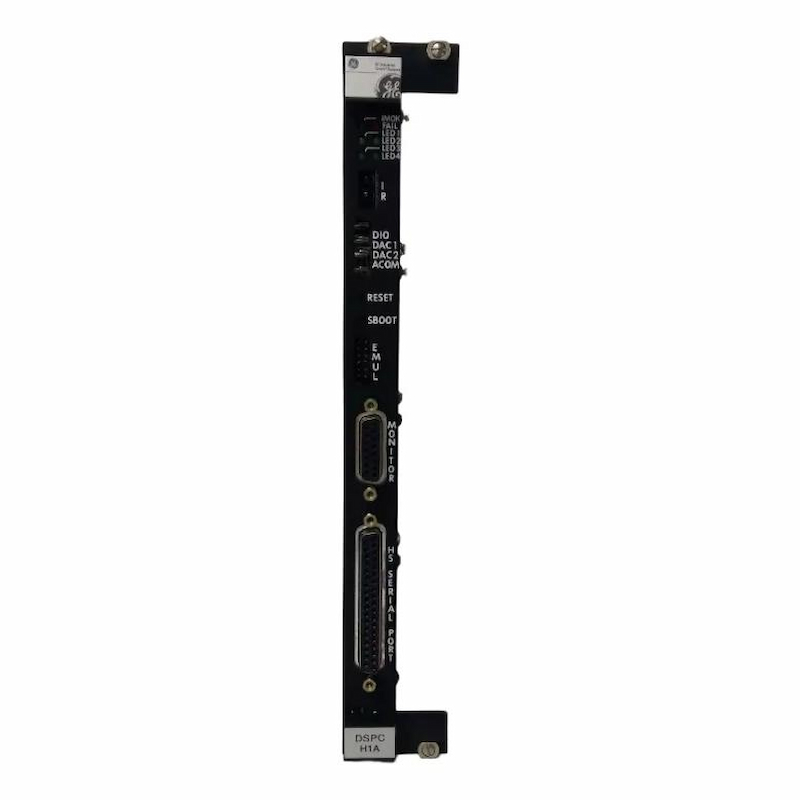

GE DS200DSPCH1ADA Digital Signal Processor Control Board

DS200DSPCH1ADA Digital Signal Processor Control Board

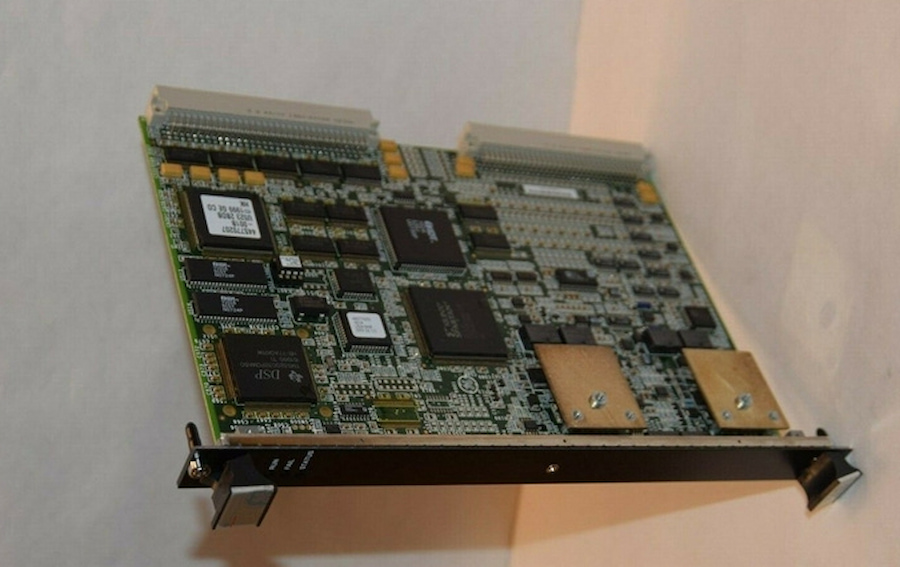

The DS200DSPCH1ADA board (DSPC) is a high performance processor board based on a digital signal processor that provides computational capacity and communications bandwidth for direct control of high performance power converter applications such as uninterruptable power sources (UPS), active filters, dynamometers, wind turbines, high performance drives, and large multi- bridge power converters.

The board plugs into one slot of a VME rack, but occupies two slots of space (for quantity of one to four daughterboards). The DSPC board can serve as a master or slave device, yet it provides its own program memory and expandable local high speed I/O for direct interface to control signals without using the VME data path.

Features

The DSPC board processor is a floating point digital signal processor (DSP) that operates at 50 MHz. The DSP can be reset by one of the following methods:

• VME sysreset

• VME master bus writes to the VME control register

• Power-up reset

• Reset pushbutton

A watchdog timer with timeout fixed at 1ms monitors the DSP.
