Bently Nevada 3500/05-01-02-00-00-01 System Rack

Bently Nevada 3500/05-01-02-00-00-01 System Rack

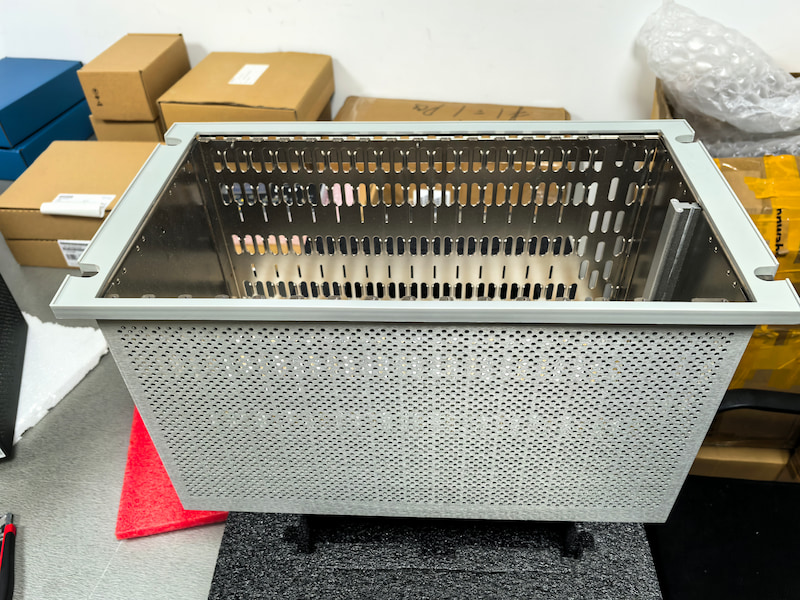

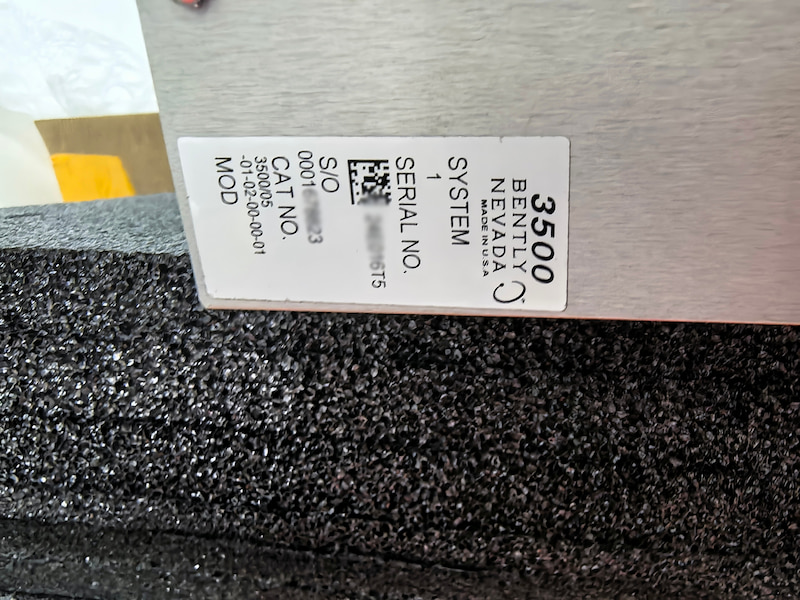

The 3500/05-01-02-00-00-01 is a system rack, manufactured and designed by Bently Nevada as part of the 3500/05 series used in machinery condition monitoring system.

The 3500 System rack design holds all 3500 monitor modules and rack power supplies. It allows the various 3500 modules to communicate with one another and the power supplies to distribute power to each module as required.

3500 racks are available in two sizes:

1. Full-size rack: 19-inch EIA rack with 14 available module slots.

2. Mini-rack: 12-inch rack with seven available module slots.

Instrument Rack

The standard 3500 Rack is available in 19”EIA rail-mount, panel-cutout-mount, and bulkhead-mount versions.

The rack provides slots for two Power Supplies and a TDI in the left-most rack positions that are reserved exclusively for these modules. The remaining 14 slots in the rack can accommodate any combination of monitor, display, relay, Key phasor module, and communication gateway modules.

All modules plug into the rack's backplane and consist of a main module and an associated I/O module. The I/O module installs at the rear of the rack for panel-mount systems, and above the main module for bulkhead-mount systems.

Standard rack depth is 349 mm (13.75 inches), while bulkhead mount rack depth is 267 mm (10.5 inches). NEMA 4 and 4X weatherproof housings are available when required for environmental protection or when purge air is used.

Mini Rack

A mini rack (12”wide instead of 19”) is also available and features 7 available monitor slots instead of 14.Like its larger counterpart, the left-most slots are reserved for the Power Supply or Supplies and TDI Module.

The mini rack may be mounted in a panel cutout or, using an optional adapter plate, on 19”EIA mounting rails. Bulkhead mounting is not available.

Technical Specifications
