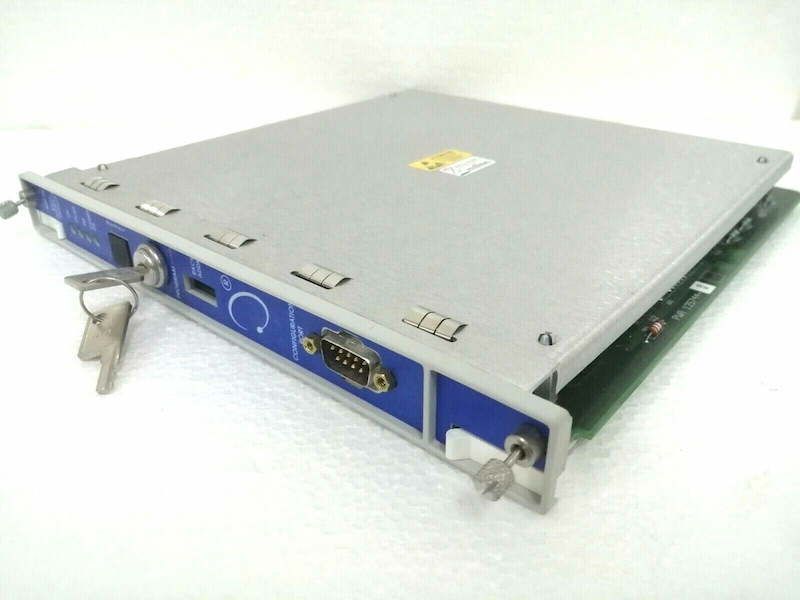

Bently Nevada 3500/20 125744-01 TMR Rack Interface Module

Bently Nevada 3500/20 125744-01 TMR Rack Interface Module

The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies).US$1,500.00

  • Brand :

    Bently Nevada
  • Part number :

    3500/20 125744-01
  • Description :

    Rack Interface Module
  • Origin :

    USA
  • Condition :

    New
  • Dimension :

    241.3 mm×24.4 mm×241.8 mm
  • Weight :

    0.91 kg
  • Payment :

    Bank Transfer
Contact Us:

Bently Nevada 3500/20 125744-01 TMR Rack Interface Module



The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies).



The RIM supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX.  While the RIM provides certain functions common to the entire rack, the RIM is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitoring system. One RIM is required per rack.





For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs "monitor channel comparison."  The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors. If the TMR RIM detects that the information from one of those monitors is no longer within a configured percentof the information of the other two monitors, it will flag that the monitor is in error and place an event in the System Event List.



Features and benefits

Manufacturer Bently Nevada
Part Number 125744-01
Ordering Information 3500/20-02-02-00
Product Catalog 3500/20
Description TMR Rack Interface Module
Inputs 4.75 watts
Outputs Rated to 5A @ 24 Vdc/ 120 Vac, 120 Watts/600 VA Switched Power
Dimension 241.3 mm×24.4 mm×241.8 mm
Weight 0.91 kg



Bently Nevada 3500/20 125744-01

100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com
