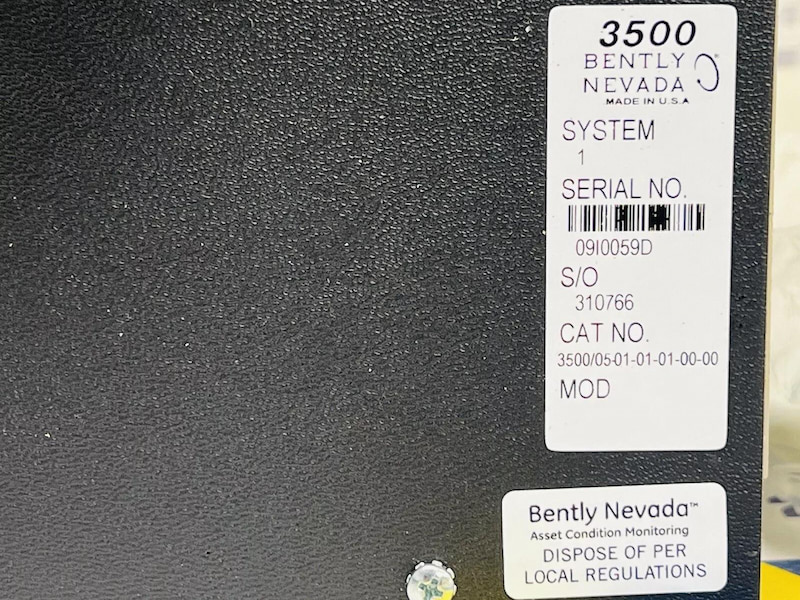

The 3500/05-01-01-00-00-00 is a system rack, manufactured and designed by Bently Nevada as part of the 3500/05 series used in machinery condition monitoring system.

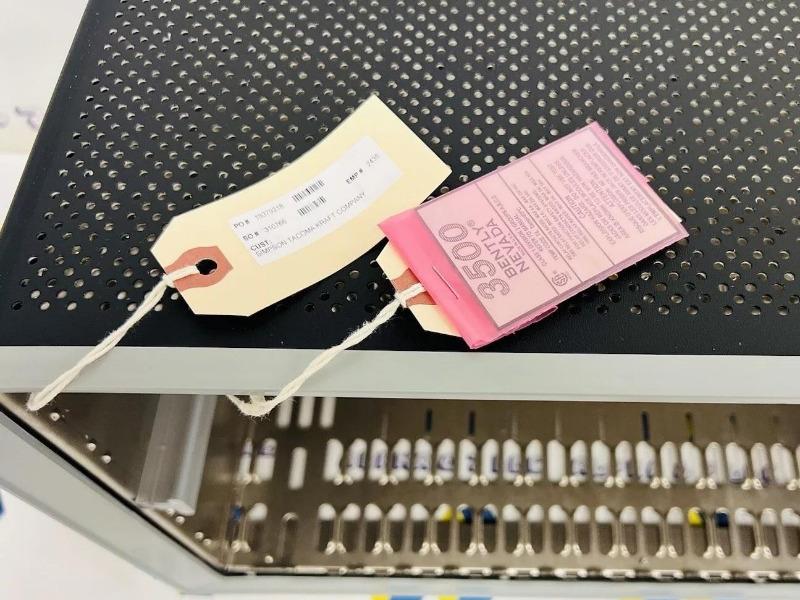

The 3500/05-01-01-00-00-00 System rack to mount all 3500 monitor modules and power supplies. The rack allows you to place 3500 modules near one another, enabling them to easily communicate, and to mount power supplies necessary to distribute power to each module.

3500 racks are available in two sizes:

Full-size rack: 19-inch EIA rack with 14 available module slots.

Mini-rack: 12-inch rack with seven available module slots.

You can order 3500 racks in three formats:

Panel mount

This rack format mounts to rectangular cutouts in panels, and secures to the panel using clamps supplied with the rack.  Wiring connections and I/O modules are accessible from the rear of the rack.

Rack mount

This rack format mounts the 3500 Rack on 19-inch EIA rails.  Wiring connections and I/O modules are accessible from the rear of the rack.

Bulkhead mount

This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack.  Wiring connections and I/O modules are accessible from the front of the rack.  The 3500/05 Mini-Rack is not available in this format.

The power supplies and rack interface module must occupy the far-left rack positions.  The remaining 14 rack positions (seven rack positions for the mini-rack) are available for any combination of modules.
