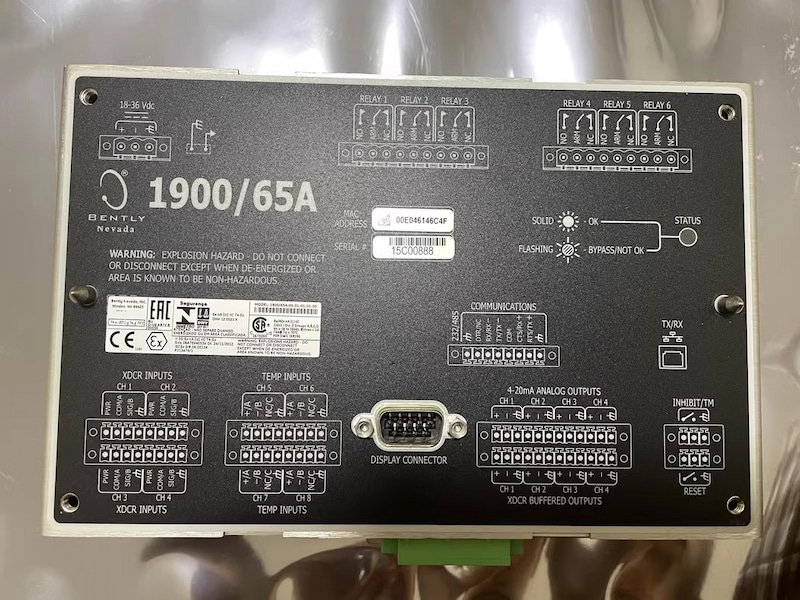

Bently Nevada 1900/65A 172323-01 172362-01 Monitor Module

Bently Nevada 1900/65A 172323-01 172362-01 Monitor Module

The 1900/65A 172323-01 172362-01 Monitor is suitable for monitoring and protecting cooling tower fans, pumps, blowers, motors, pulverizers, air compressors, small reciprocating compressors, small electric motors, small hydro turbines, centrifuges, and other equipment assets.

Each input for channels 1 through 4 has a dedicated buffered output.  The signal does not have gain, and is not scaled. Each output is buffered to provided short circuit and EMI protection.

Benefits

• Lower-cost, continuous online protection than traditional rack-based systems

• Digital connectivity via optional Modbus® gateway serves rich static variable set, alarm statuses, and event list data to Distributed Control Systems (DCSs), Programmable Logic Controllers (PLCs),Supervisory Control and Data Acquisition (SCADA) Systems, and System 1* Optimization and Diagnostic Software

• Reliable system offers improved capability over transmitters for equipment protection

• Uses proven and reliable circuit designs as found in 3500 and 3300 monitoring systems

• 8-channel monitor offers greater number and variety of inputs than other 1900 Series monitors

• Easy installation and configuration through small size, flexible mounting options, and configuration software

• Monitor functions independently or with an optional display for local indication of all channels and variables

• Display can be mounted directly to the monitor or up to 250 feet away and connected to the monitor via a single cable

• Particularly suited for use on standalone, skid-mounted, and packaged machinery

• Packaged and designed for cost-effective OEM applications

• Simplified, less costly on-line installation via 232 or 485 connectors.

• Flexible Dynamic channels can be configured for vibration, position or speed

Technical Specifications
