Bently Nevada 1900/65A 167699-02 Display Module

Bently Nevada 1900/65A 167699-02 Display Module

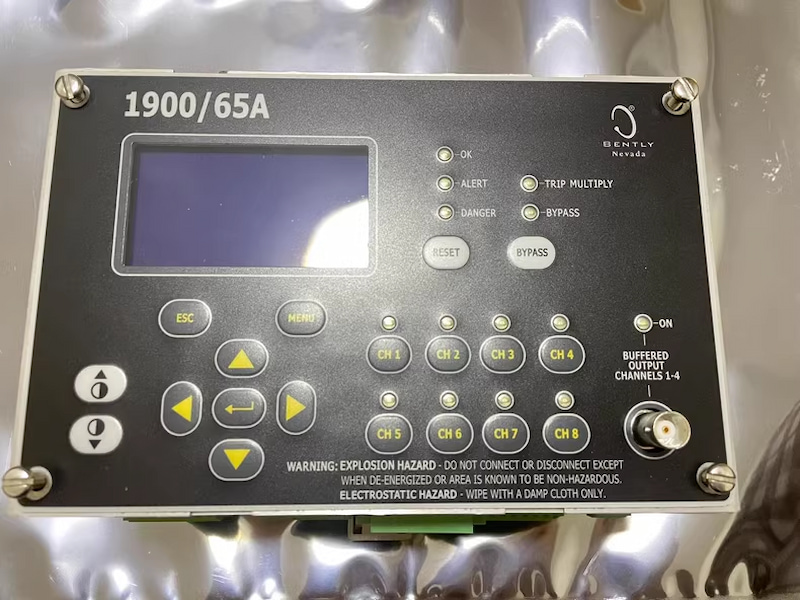

The 1900/65A 167699-02 supports an optional display/keypad to view channel information or make minor configuration changes. This allows the 1900/65A to operate as a stand-alone package. If desired, the user can mount the display up to 75 metres (250 feet) from the Monitor Module.

A single buffered output on the 167699-02 Display Module provides access to input Channels 1 through 4. The signal does not have gain, and is not scaled. This output is buffered to provide short circuit and EMI protection.

Capabilities

• Self-contained, stand-alone monitor

• Continuous monitoring and protection, suitable for auto shut down applications

• Optional Modbus gateway communicates via Modbus/TCP over Ethernet to any Modbus client, including DCSs, PLCs, SCADA systems, and System 1

• 4 channels of vibration inputs (2- and 3-wire velocity and acceleration sensors and Bently Nevada proximity sensors)

• Up to 4 variables per channel with independent integration and filter control

• Up to 8 pole filters on some variables

• 24 bit A/D converters with 25 kHz bandwidth

• 4 Channels of temperature inputs (type E, J, K, and T thermocouples as well as RTD type sensors)

• 2 levels of alarms — ALERT and DANGER

• 6 configurable relays with voting logic

• Buffered vibration/speed transducer outputs—4 on monitor, 1 on display

• 4 configurable 4-20 mA recorder outputs

• Stand alone configuration software

• Accepts 18 to 36 Vdc power; an external power supply is available for 110/220 VAC

• Mountable via DIN-rail clip or the bulkhead mounting plate

• Optional fiberglass housing, or steel door (for panel mount applications), to meet weatherproof installation requirements and IP65

• Approvals include CSA (Class 1 Div 2 — although the monitor cannot be installed in Div 1 locations, it will support transducers installed in Div 1 locations via the use of isolators and barriers), ATEX (Zone 2), CE, and GOST (IEC Ex)

• Trip Multiply function to prevent unwanted machine trips during periods of expected high vibration like machine start-ups

Technical Specifications
